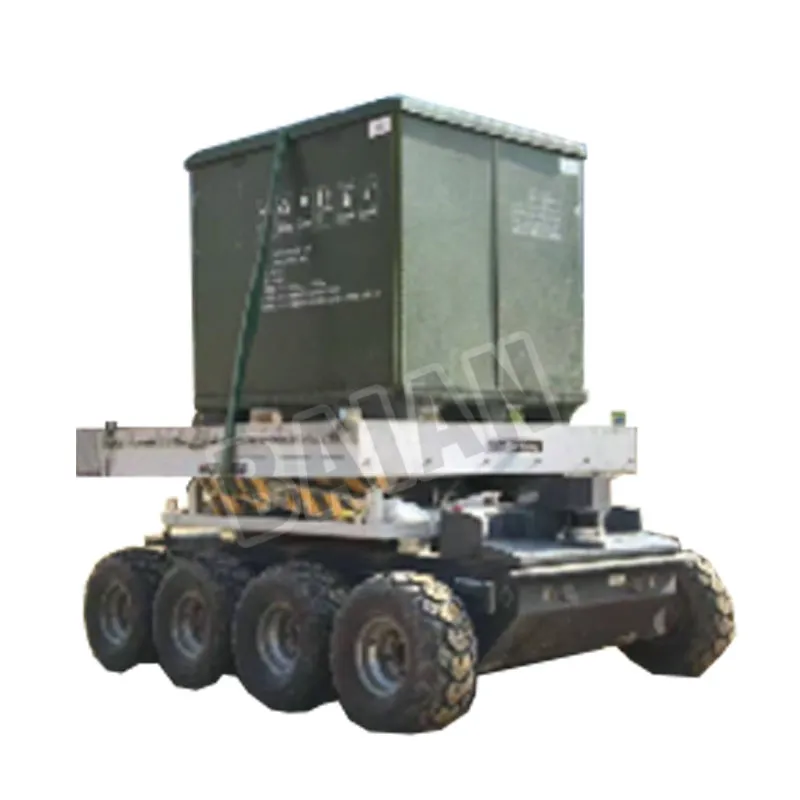

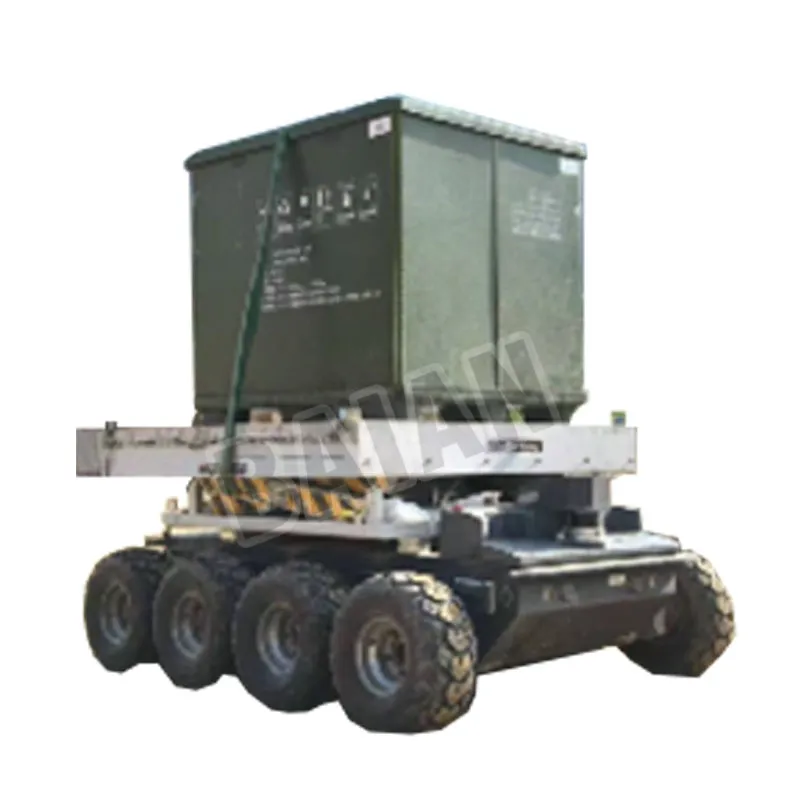

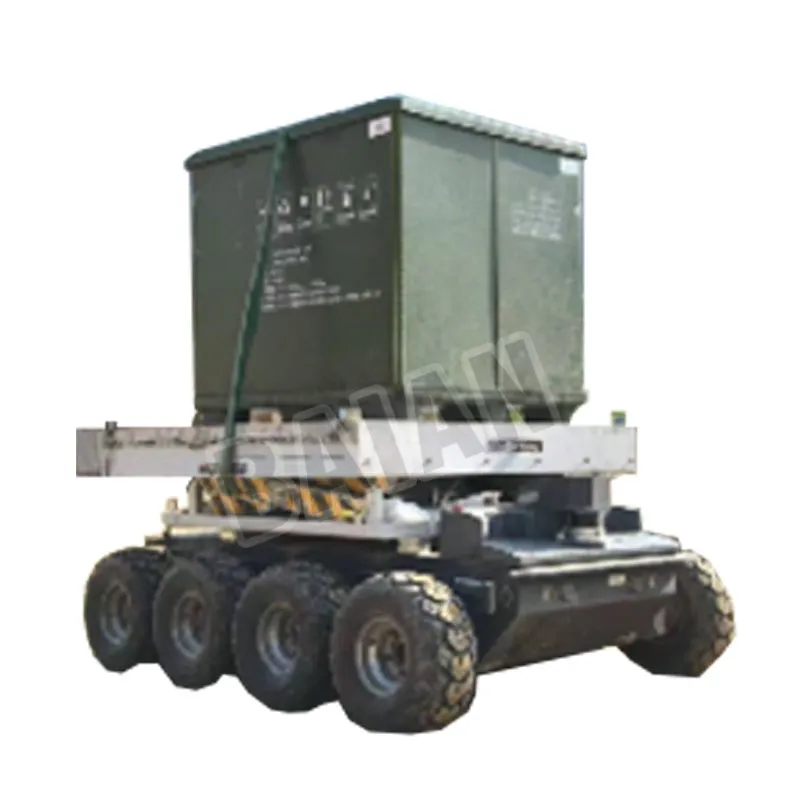

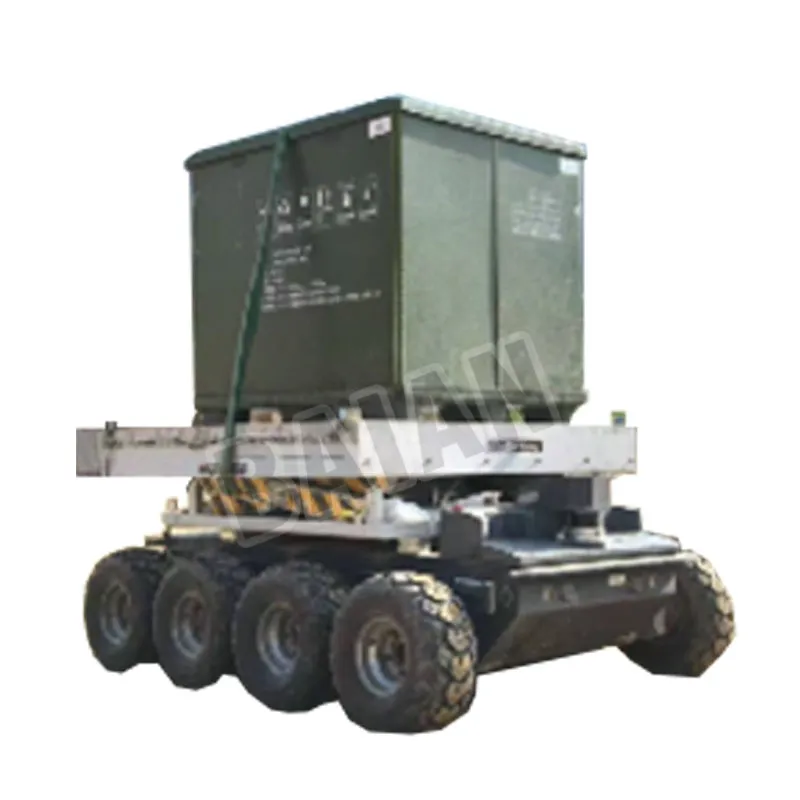

Unmanned transport robot

Unmanned transport robot

Product Introduction

1. The unmanned transport robot can efficiently and quickly carry heavy loads across narrow dirt roads, steep slopes, and dense forests. It can also serve as a mobile emergency supply warehouse (equipped with generators, water purification systems, and stretchers) to evacuate injured personnel from dangerous areas.
2. It is also suitable for field supply transport (for high-altitude outposts and mobile emergency supply stations), effectively meeting the needs of reconnaissance, patrol, search and rescue missions. This robot is suitable for use in the military, public security, firefighting, nuclear chemical engineering, exploration, and emergency rescue. During the high-intensity material transfer process, it can significantly reduce the physical exertion of field personnel and improve operational efficiency.

Technical Parameters



Robot Platform Width (m) 1.58 (wide tire)
Length (m) 2
Height (m) 1.2
Motor Power (kW/kg) 18
Product Weight (kg) <850 (topless)
Wheelbase (mm) 976
Tread (mm) 1215
System Metrics Combat Radius (km) 30
Endurance (min) 480
Maximum Speed (km/h) 10
Cruising Speed (km/h) 0-10
Maximum Load Weight (kg) 1000
Maximum Mission Payload (kg) 500
Operating Temperature (°C) -30°~60°
Following Distance (m) 3-10m adjustable
Maximum Obstacle Climbability (mm) 350
Protection Level IP65
Traction (N) 12000
Trench Crossing Width (mm) 590
Wading Depth (mm) 350
Climbing Angle (°C) 35° with load
Mapping Area (㎡) 1,000,000
Control Method Manual/Semi-autonomous/Fully autonomous
Remote Control Distance (km) 0.5
Portable Remote Control Terminal Weight (kg) ≤2
System Weight (t) Material transport robot 1 ton / roller robot 1.2 tons
