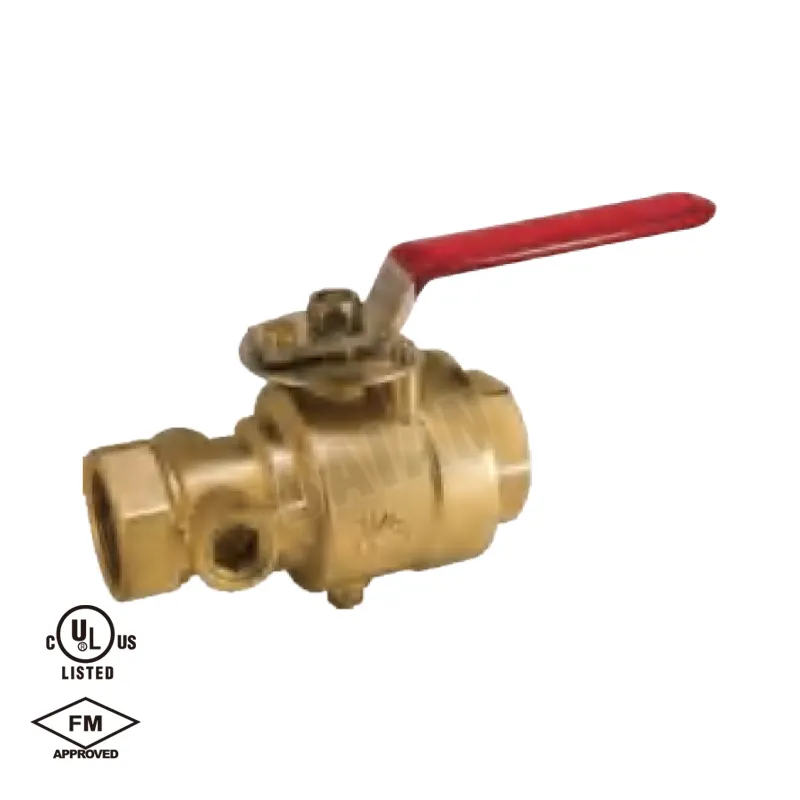

UL Listed Brass Valve Test and Drain

Technical Specification

Valve StandardPositioning Of Handle For Off Testing Or Drain；Only 2 Threaded Connections；Large, Integral Sight Glass On Both Sides；1/2" (Nominal) Test Orifice；KFactor:5.6
Working Pressure：300PSI

Material Specification

No. Part Material Specification
1 Body Brass C37700
2 Cap Brass C37700
3 Seal PTFE --
4 Ball Brass C37700
5 Stem Brass C37700/HPb59-1
6 O-Ring NBR --
7 Handle Carbon Steel/Stainless Steel Q235A/SS304
8 Nut Carbon Steel/Stainless Steel Q235A/SS304
9 Gland Packing PTFE --
10 Gland Ring Brass C37700
11 Gland Nut Brass C37700
12 Spring Stainless Steel SS302/SS304
13 Steel Ball Stainless Steel SS304
14 Indicator Plate Carbon Steel/Stainless Steel Q235A/SS304
15 Plug Brass C37700
16 Washer NBR --
17 Sight Glass PC --
18 Retaining Ring Brass C37700

Dimension

DN INCH L(mm) L1(mm) S(mm) H(mm) H1(mm) L3(mm) L4(mm)
25 1" 141 36 42 72 59 21 127
32 1¼" 141 36 42 72 59 21 127
40 1½" 161 40 58 89 80 21 127
50 2" 161 40 -- 89 80 21 127
