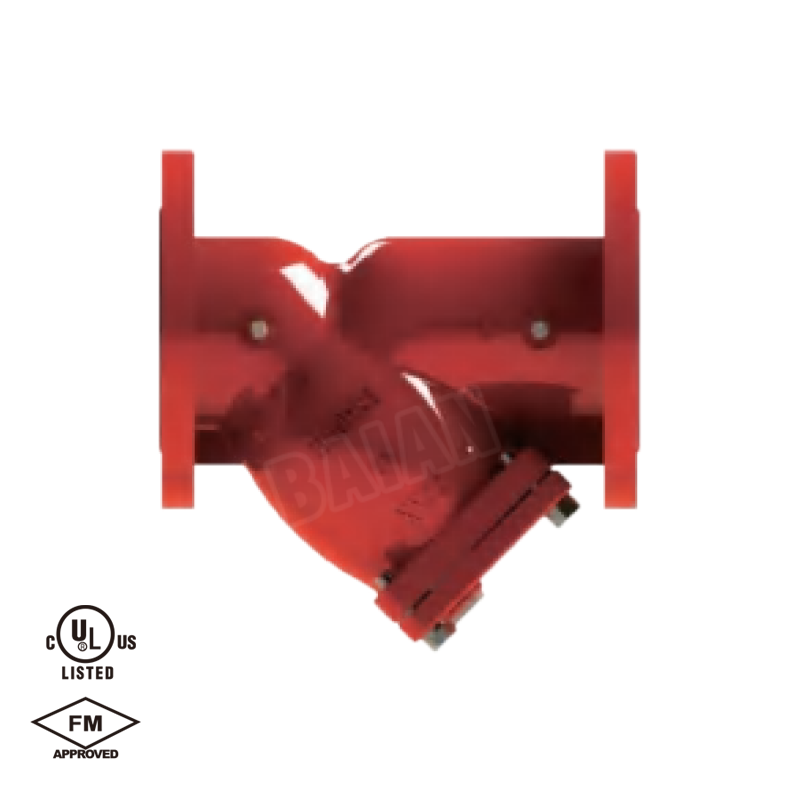

UL Listed Y Strainer Flange-Flange Ends

Technical Specification

Valve Standard：AWWA C550
Working Pressure：200PSI/ 250PSI / 300PSI
Working Temperature：-10°C- 120°C
Connection Ends：ASME B16.1 CLASS125 / B16.42 CLASS150/B16 / EN1092-2 PN10/PN16/PN25 / BS10 Table D / Table E

Material Speciﬁcation

No.	Part	Material	Specification
1	Body	Ductile Iron	ASTM A536 65-45-12
2	Bolt	Carbon Steel	GR.8.8
3	Washer	Galvanized Carbon Steel	--
4	Washer	Galvanized Carbon Steel	--
5	Cover	Ductile Iron	ASTM A536 65-45-12
6	Screen	Stainless Steel	SS304
7	Plug	Galvanized Carbon Steel	--
8	O-Ring	EPDM	--
9	Test Screw	Steel	ASTM B16

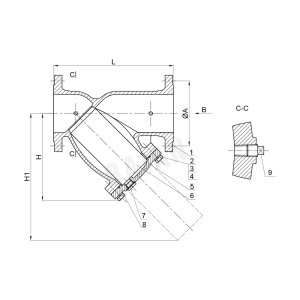

Dimension

DN	INCH	L(mm)	H(mm)	H1(mm)	φA
50	2"	203.2	130	195	φ125
65	2½"	254	158	240	φ145
80	3"	260	175	270	φ160
100	4"	308.1	202	320	φ180
125	5"	398.3	290	425	φ210
150	6"	471.4	334	495	φ240
200	8"	549.4	391	570	φ295
250	10"	654.1	460	700	φ355
300	12"	762	590	840	φ410
