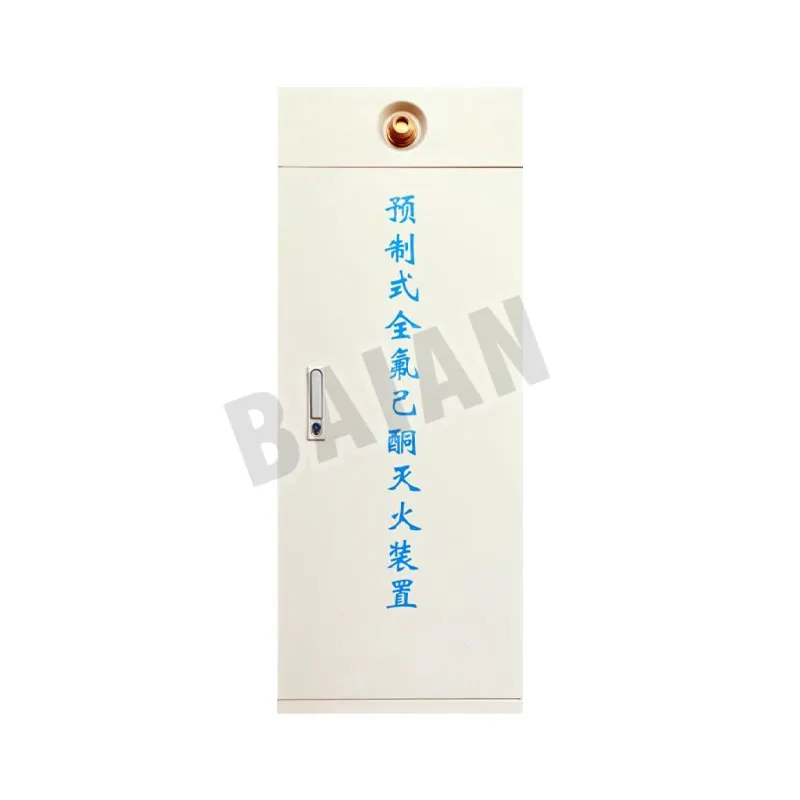

Prefabricated Perfluorohexanone Fire Extinguishing System (Cylinder Type)

Prefabricated Perfluorohexanone Fire Extinguishing System (Cylinder Type)

Prefabricated Perfluorohexanone Fire Extinguishing System (Cylinder Type)

Features

1.Employs a bottle-type internal pressurization design.
2.The bottle body is made of HP345 material with an internal coating process, ensuring good compatibility with the extinguishing agent.
3.The perfluorohexanone extinguishing agent used in the device is characterized by insulation, high efficiency, non-corrosiveness, and environmental friendliness. It can efficiently and rapidly extinguish electrical battery fires in their early stages and continuously suppress reignition.
4.The device can be equipped with a pulse-jet discharge container valve, enabling multiple intermittent discharges with zero leakage during the opening and closing process.
5.Suitable for protected areas in spaces such as battery storage compartments, computer rooms, archives, valuables warehouses, and telecommunications centers.

Technical Parameter

Product Model YF70/2.5N YF40/2.5N
Drug Type Perfluorohexanone
Operating Temperature -10℃~+50℃
Operating Pressure 2.5Mpa(20℃)
Startup Method Electric DC24V
Mechanical Manual ≤150N
Fire extinguishing system spray time ≤10s
Storage cylinder specifications 40L 70L
Filling density 1420kg/m³
Connecting pipe length 600mm 600mm
Dimensions 470mm×430mm×1300mm 470mm×430mm×1500mm
Applicable standards T/CECS10171-2022 Prefabricated Perfluorohexanone Fire Extinguishing Device
