Description

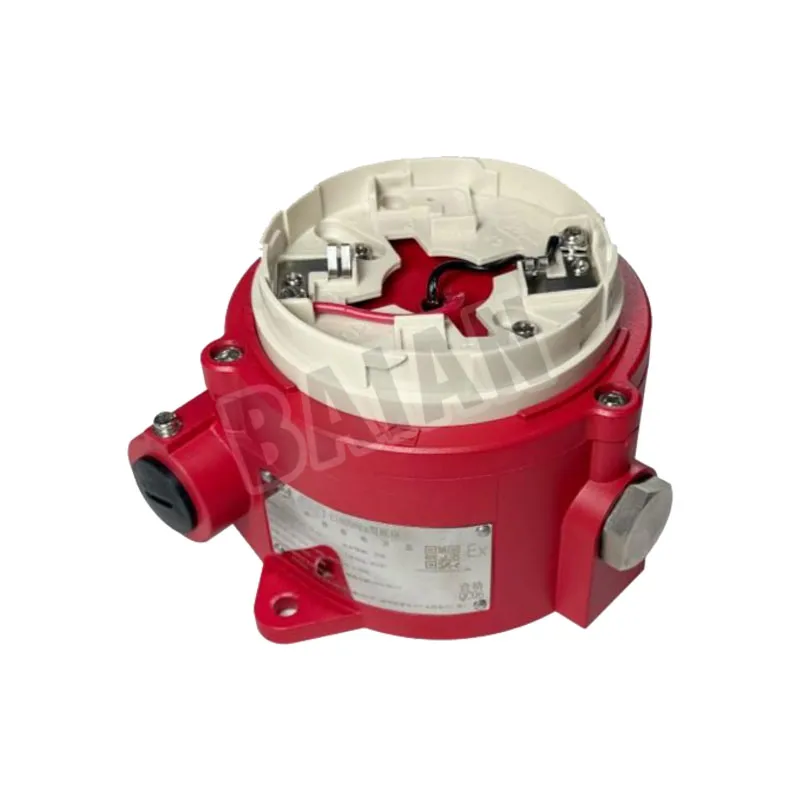

Base

J-EI8008EX

Base

Features

1.Explosion-proof product, compatible with intrinsically safe detectors.
2.Excellent explosion-proof performance and good resistance to chemical corrosion. Suitable for Zone 1 and Zone 2 hazardous gas locations in the petroleum, chemical, and other industries requiring explosion protection, as well as explosive gas or vapor environments of Class IIA, IIB, and IIC, T1-T6 groups.

Technical Parameter

Operating Environment	Temperature: -10℃~50℃; Humidity: ≤95%RH (non-condensing)
Operating Voltage	DC24V
Explosion-proof Mark	Exdb IIC T6Gb
Enclosure Material and Color	Die-cast aluminum alloy ADC12 red
Protection Rating	IP66
Dimensions	159mm×130mm×76.5mm (L×W×H)
Applicable Standards	GB/T3836.1-2021 Explosive Atmospheres - Part 1: Equipment - General Requirements
Applicable Standards	GB/T3836.2-2021 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"
