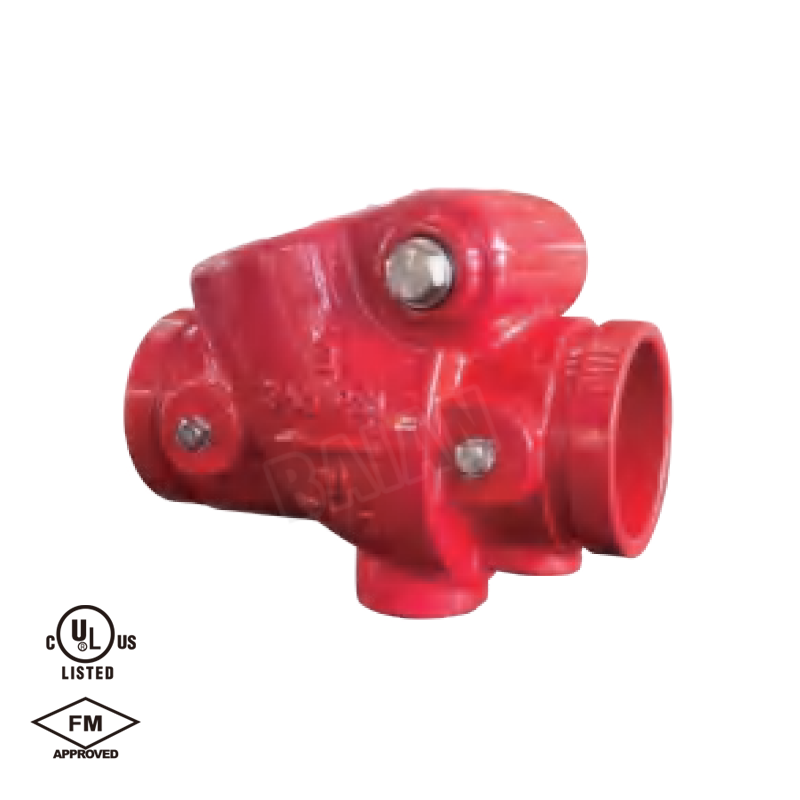

UL Listed Swing Check Valve Resilient Seated Grooved Ends

Technical Specification

Valve Standard：AWWAC508/AWWA C550
Working Pressure：365PSI
Working Temperature：-10°C- 120°C
Connection Ends：AWWA C606 / BG/T 8260

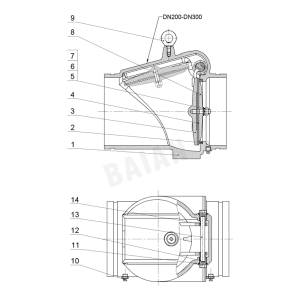

Material Speciﬁcation

No.	Part	Material	Specification
1	Body	Ductile Iron	ASTM A536 65-45-12
2	Seat	Bronze	B271 S83600
3	Disc	Ductile Iron	ASTM A536 65-45-12
4	Seal Ring	EPDM	--
5	Set Screw	Stainless Steel	SS304
6	Hexgona Nut	Stainless Steel	SS304
7	Plain Washer	Stainless Steel	SS304
8	Disc Retainer	Stainless Steel (DN50 ~ DN150)	SS304
8	Disc Retainer	Ductile Iron (DN200 ~ DN300)	ASTM A536 65-45-12
9	Eyebolt (8" 10" 12")	Stainless Steel	SS304
10	Plug	Stainless Steel	SS304
11	Plug The Gasket	EPDM	--
12	Shaft Hole Plug	Stainless Steel	SS304
13	Shaft	Stainless Steel	SS304
14	Bushing	Bronze	B150 C63000

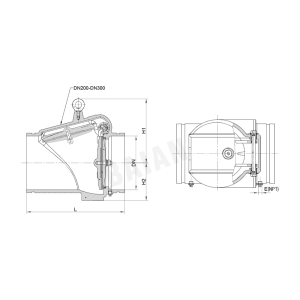

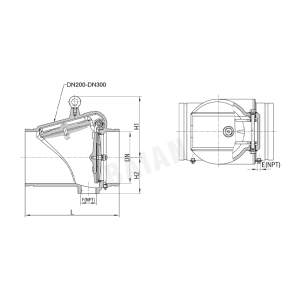

Dimension

DN	INCH	L(mm)	H1(mm)	H2(mm)
50	2"	169	80	63
65	2½"	203	85	68
80	3"	213	93	75
100	4"	245	103	87
125	5"	267	121	95
150	6"	292	140	110
200	8"	356	237	137
250	10"	432	277	161
300	12"	495	309	184

DN	INCH	L(mm)	H1(mm)	H2(mm)	E	F
50	2"	169	80	63	¼"	1"
65	2½"	203	85	68	¼"	1¼"
80	3"	213	93	75	¼"	1¼"
100	4"	245	103	87	¼"	2"
125	5"	267	121	95	¼"	2"
150	6"	292	140	110	¼"	2"
200	8"	356	237	137	¼"	2"
250	10"	432	277	161	¼"	2"
300	12"	495	309	184	¼"	2"
