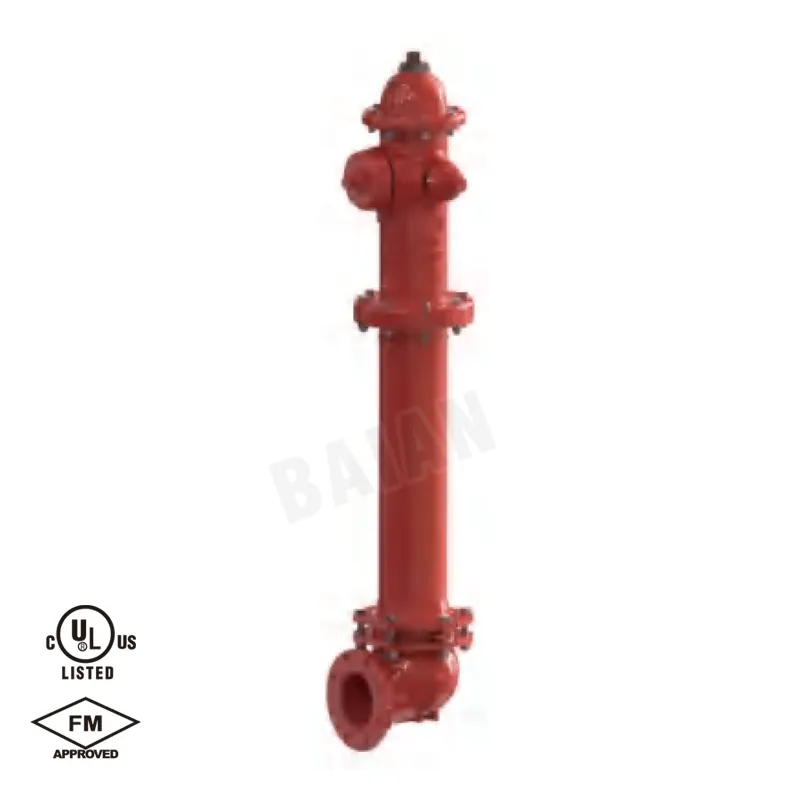

UL Listed Dry Barrel Fire Hydrant
Technical Specification
Design Standard：FM 1510/UL 246/ AWWA C502
Coating Standard：AWWA C550
Nozzle Thread Standard：NFPA 1963
Hose Nozzle：2.5"-2
Pumper Nozzle：4"or 4.5"-1
Mechanical iont：Size: 6" ASNI / AWWA C111/A21.11/ANSI/AWWA C153 / A21.53
Flange End：Size: 6" ASNI Class 125/ 150/BSEN 1092-2PN10/PN16
Working Pressure：250PSI
Material Specification
| No. |
Part |
Material |
Specification |
| 1 |
Operating Nut |
Brass |
C84400 |
| 2 |
Dust Ring |
EPDM |
-- |
| 3 |
Lock Nut |
Stainless Steel |
CF8 |
| 4 |
Antifiction Pad |
Bronze |
C63000 |
| 5 |
Plug |
Stainless Steel |
SS304 |
| 6 |
Cover |
Ductile Iron |
ASTM A536 65-45-12 |
| 7 |
Top Body |
Ductile Iron |
ASTM A536 65-45-12 |
| 8 |
Top Shaft |
Stainless Steel |
SS420 |
| 9 |
Gland |
Stainless Steel |
SS304 |
| 10 |
Hose Nozzle Cap (4") / Hose Nozzle Cap (4.5") |
Ductile Iron |
ASTM A536 65-45-12 |
| 11 |
Hose Nozzle Gasket (4") / Hose Nozzle Gasket (4.5") |
EPDM |
-- |
| 12 |
Hose Nozzle (4") / Hose Nozzle (4.5") |
Brass |
C84400 |
| 13 |
Chain |
Stainless Steel |
SS304 |
| 14 |
O-Ring |
EPDM |
-- |
| 15 |
Coupling |
Stainless Steel |
SS420 |
| 16 |
Down Body |
Ductile Iron |
ASTM A536 65-45-12 |
| 17 |
Safety Flange |
Cast Iron |
HT200 |
| 18 |
Down Shaft |
Stainless Steel |
SS420 |
| 19 |
Drainage Ring Cover |
Ductile Iron |
ASTM A536 65-45-12 |
| 20 |
Elbow Body |
Ductile Iron |
ASTM A536 65-45-12 |
| 21 |
Hexagon Bolt |
Stainless Steel |
SS304 |
| 22 |
Plain Washer |
Stainless Steel |
SS304 |
| 23 |
Lock Washer |
Stainless Steel |
SS304 |
| 24 |
Hexagon Nut |
Stainless Steel |
SS304 |
| 25 |
O-Ring |
EPDM |
-- |
| 26 |
Drain Valve Cover Seal |
EPDM |
-- |
| 27 |
O-Ring |
EPDM |
-- |
| 28 |
Pin Shaft |
Stainless Steel |
SS304 |
| 29 |
Pin |
Stainless Steel |
SS304 |
| 30 |
Hexagon Bolt |
Stainless Steel |
SS304 |
| 31 |
Plain Washer |
Stainless Steel |
SS304 |
| 32 |
Lock Washer |
Stainless Steel |
SS304 |
| 33 |
Hexagon Nut |
Stainless Steel |
SS304 |
| 34 |
Upper Plug Body Seal |
EPDM |
-- |
| 35 |
Hexagon Socket Head Cap Screws |
Stainless Steel |
SS304 |
| 36 |
O-Ring |
EPDM |
-- |
| 37 |
O-Ring |
EPDM |
-- |
| 38 |
Hexagon Bolt |
Stainless Steel |
SS304 |
| 39 |
Plain Washer |
Stainless Steel |
SS304 |
| 40 |
Lock Washer |
Stainless Steel |
SS304 |
| 41 |
Hexagon Nut |
Stainless Steel |
SS304 |
| 42 |
O-Ring |
EPDM |
-- |
| 43 |
O-Ring |
EPDM |
-- |
| 44 |
Hose Nozzle Cap |
Ductile Iron |
ASTM A536 65-45-12 |
| 45 |
Hose Nozzle Gasket |
EPDM |
-- |
| 46 |
Hose Nozzle |
Brass |
C84400 |
| 47 |
Hexagon Socket Set Screws |
Stainless Steel |
SS304 |
| 48 |
O-Ring |
EPDM |
-- |
| 49 |
Drain Valve Cover |
Brass+EPDM |
C84400 |
| 50 |
Spring |
Stainless Steel |
SS304 |
| 51 |
Hexagon Socket Head Cap Screws |
Stainless Steel |
SS304 |
| 52 |
Hex Nuts |
Stainless Steel |
SS304 |
| 53 |
Seat Ring |
Brass |
C84400 |
| 54 |
Tablet |
Ductile Iron |
ASTM A536 65-45-12 |
| 55 |
Hexagon Socket Head Cap Screws |
Stainless Steel |
SS304 |
| 56 |
Disc Seal |
EPDM |
-- |
| 57 |
Disc |
Ductile Iron |
ASTM A536 65-45-12 |
| 58 |
O-Ring |
EPDM |
-- |
| 59 |
Nut Press Ring |
Ductile Iron+EPDM |
ASTM A536 65-45-12 |
| 60 |
Hexagon Socket Set Screws |
Stainless Steel |
SS304 |
Dimension
| Burial Depth |
H (mm) |
H1 (mm) |
H2 (mm) |
| 1" |
326 |
804 |
460 |
| 2" |
543 |
804 |
460 |
| 3" |
848 |
804 |
460 |
| 3"-6" |
1001 |
804 |
460 |
| 4"-0" |
1153 |
804 |
460 |
| 4"-6" |
1306 |
804 |
460 |
| 5"-0" |
1458 |
804 |
460 |
| 5"-6" |
1611 |
804 |
460 |
| 6"-0" |
1763 |
804 |
460 |
| 6"-6" |
1916 |
804 |
460 |
| 7"-0" |
2068 |
804 |
460 |
