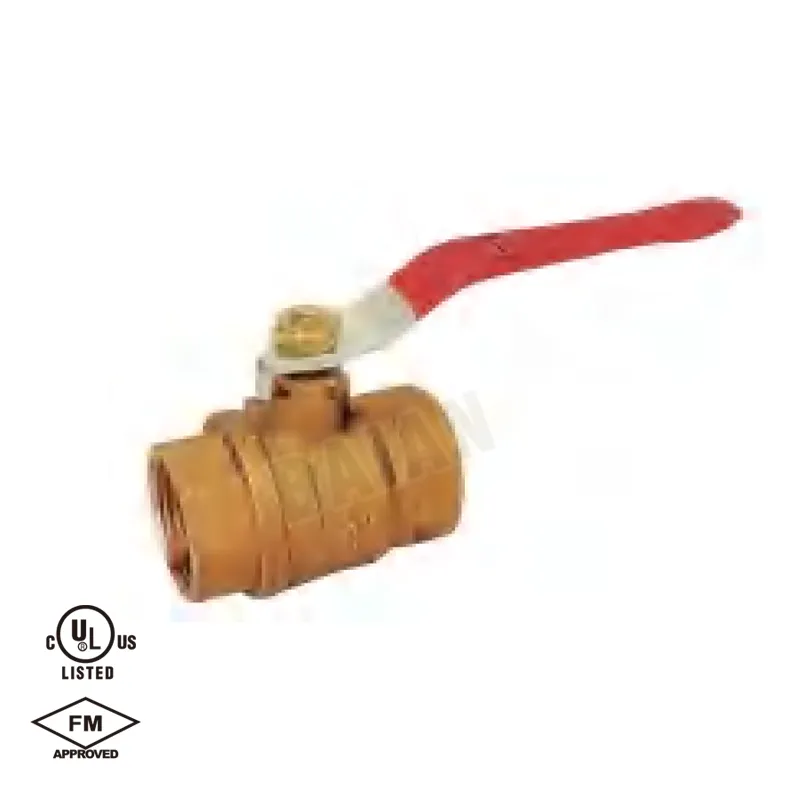

UL Listed Brass Valve Ball Valve
Technical Specification
Valve Standard：Brass ball valve (Full port)；Steel handle with plastic handle；FM/UL Certificated Size: 1/4",3/8",1/2",3/4",1",1-1/4",1-1/2", 2"
Working Pressure：FM30OPSI/ UL 600PSI
Material Specification
| No. |
Part |
Material |
Specification |
| 1 |
Body |
Brass |
C37700 |
| 2 |
Bonnet |
Brass |
C37700 |
| 3 |
Seat |
PTFE |
-- |
| 4 |
Ball |
Brass |
C37700 |
| 5 |
Stem |
Brass |
HPb59-1 |
| 6 |
Packing |
PTFE |
-- |
| 7 |
Gland |
Brass |
HPb59-1 |
| 8 |
Handle |
Carbon Steel |
Q235A |
| 9 |
Nut |
Carbon Steel |
Q235A |
Dimension
| G |
DN |
L(mm) |
H(mm) |
SW(mm) |
Gt(mm) |
LH(mm) |
| NPT ½"-14 |
14.5 |
57 |
51.5 |
25 |
15.5 |
89 |
| NPT ¾"-14 |
19.5 |
63 |
61 |
31 |
16 |
104 |
| NPT 1"-11.5 |
24.5 |
75.5 |
63.5 |
38 |
19 |
117.5 |
| NPT 1¼"-11.5 |
32 |
86.5 |
70 |
47 |
19.5 |
117.5 |
| NPT 1½"-11.5 |
40 |
94.2 |
94 |
53 |
19.5 |
145 |
| NPT 2"-11.5 |
50 |
108 |
102 |
65 |
20 |
145 |
