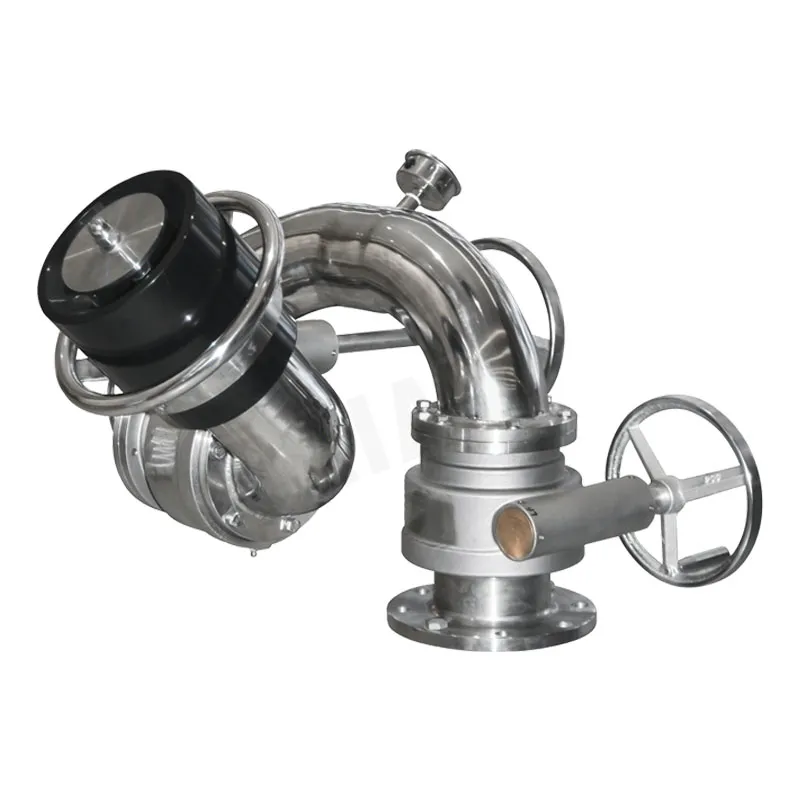

Truck Mounted Remote Control Water Monitor

PSKD12/120-200(7200-12000LPM)

SS304 /SS316 Material;
Vertical travel of 180°,from -15° to +60°;
360° rotation horizontally;
Electric control jetting Pattern: Straight stream,Fog;

Model Number	PSKD120/120-200
Flow Rate	7200/9000/10800/12000LPM (Choose one flow rate )
Working Pressure	14 Bar
Max. Reach @ 14bar	110 meters @12000 LPM
Max. Fog Angle	120°
Max Range Of Monitor	-15° to +60° Vertically, 360° Rotation
Waterway Size	2.5”(65mm)
Monitor Outlet	2.5” (65mm) NH male thread
Monitor Inlet	Flange 4” BS4504 is standard,other standard flange is available
Material	SS304/SS316
