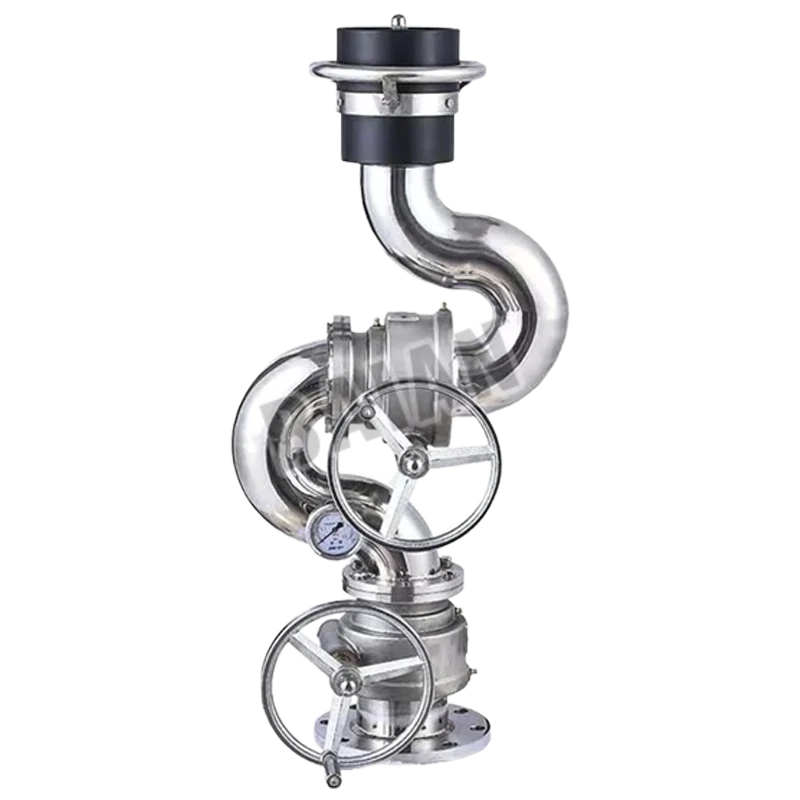

Stainless Steel Manual Fire Water Monitor Design For Fire Fighting

Stainless Steel Manual Fire Water Monitor Design For Fire Fighting
PS8/20-50-W-W(1200-3000LPM)

Specifications:

1. Material: SS304 material structure
2. Diameter: DN50 (2") to DN150 (6") are common.
3. Flow rate: large flow rate, typical range 1200 - 6000+L/min.
4. Range: DC range 50 - 90+ meters.
5. Operation: wheel control, horizontal 360° rotation, vertical -15° to +60° lifting.
6. Spray mode: DC, mist.
7. Installation: flange base fixed.
8. Flange standard: BS4504, ANSI150, GB, etc.

Applications:

1. Strong corrosion, harsh environment: petrochemical plants, chemical plants, offshore platforms, ports, ships, power plants, airports.
2. Places that require reliable water/electricity dependence: tank areas, tunnels, large warehouses.
3. Areas with high sanitation requirements (316 stainless steel): food/pharmaceutical factories.
4. Municipal fixed firefighting facilities.

Working principle:

1. Connect to a pressure water source (fire pump/hydrant).
2. Manually open the valve to control the water flow.
3. Manually adjust the horizontal rotation and elevation angle of the gun body to aim at the fire point.
4. Manually switch the water flow form of the gun head (DC impact/spray cooling).
5. High-pressure water jet fire extinguishing.

Features:

1. Core advantages: excellent corrosion resistance, long life, and less maintenance.
2. High reliability: Sturdy structure, purely manual operation, not affected by electricity.
3. Large flow and high range: Effectively cover long-distance/large-area fire scenes.
4. Flexible operation: 360° horizontal full rotation, wide elevation angle, optional water flow form (dual-purpose gun head).
5. Easy maintenance.

Working pressure:

1. Rated working pressure: Usually 0.8 - 1.2 MPa (8-12 bar).
2. Maximum working pressure: ≥ 1.6 MPa (16 bar).
