Lithium Battery Fire Extinguisher
Product Overview
This fire extinguisher, designed specifically for lithium batteries, is a new type of physical fire-extinguishing product. It is non-toxic, pollution-free, and offers rapid fire suppression with a low risk of re-ignition. It is primarily suitable for extinguishing Class A fires (solid materials), Class B fires (liquids or meltable solids), Class E fires (live electrical equipment), Class F fires (cooking appliances containing cooking media), and lithium battery fires.
Technical Specifications
| Product Name |

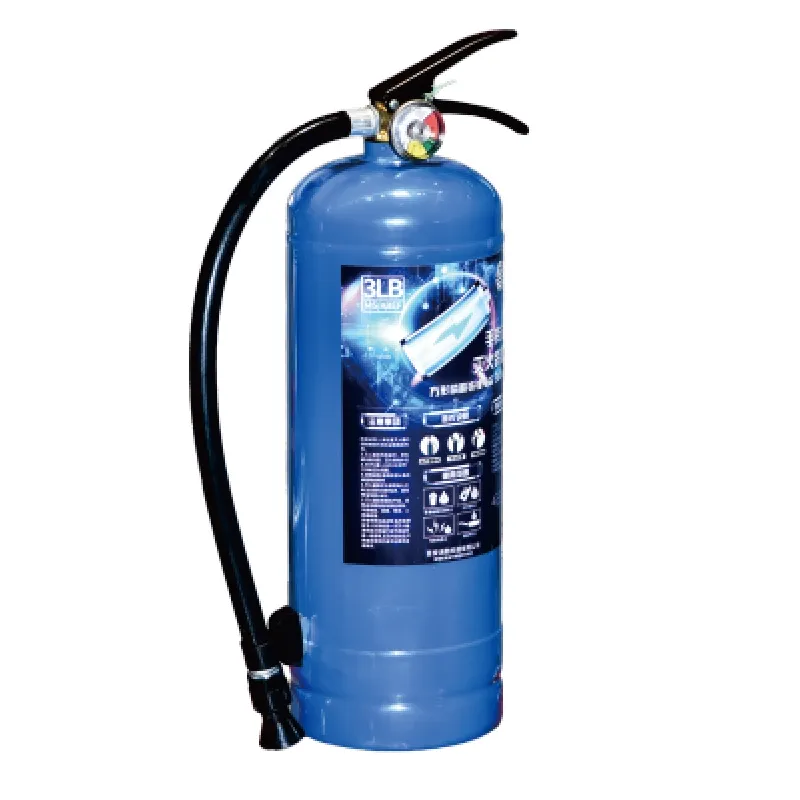

Portable water-based fire extinguisher |

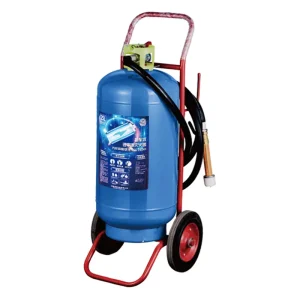

Wheeled water-based fire extinguisher |
| Model/Specification |
MS/ABEF2C-L |
MS/ABEF3C-L |
MS/ABEF6-L |
MS/ABEF9-L |
MSTW/ABEF25-L |
| Operating Temperature |
+5~60℃ |
| Fire Extinguishing Range |
A, B, E, F, battery, |
| Fire-extinguishing rating |
Class A |
1A |
2A |
3A |
3A |
6A |
| Class B |
55B |
89B |
89B |
144B |
183B |
| Class F |
25F |
40F |
40F |
75F |
75F |
| Lithium Iron Phosphate (LFP) |
230AH |
280AH |
304AH |
314AH |
628AH |
| Lithium Polymer (NCM/NCA) |
5200MAH3S |
5200MAH4S |
5200MAH4S |
10000MAH6S |
16000MAH6S |
| Filling quantity |
2L (-5%~0%) |
3L (-5%~0%) |
6L (-5%~0%) |
9L (-5%~0%) |
25L (-5%~0%) |
| Effective discharge time |
≥9s |
≥9s |
≥13s |
≥13s |
≤210s/≥40s |
| Propellant gas |
Nitrogen (1.2 MPa) (at 20°C) |
| Hydrostatic test pressure |
2.1MPa |
| Executive standard |
GB4351-2023 |
GB8109-2023 |
| Q/BAIAN 028-2025 |
Q/BAIAN 028-2025 |
