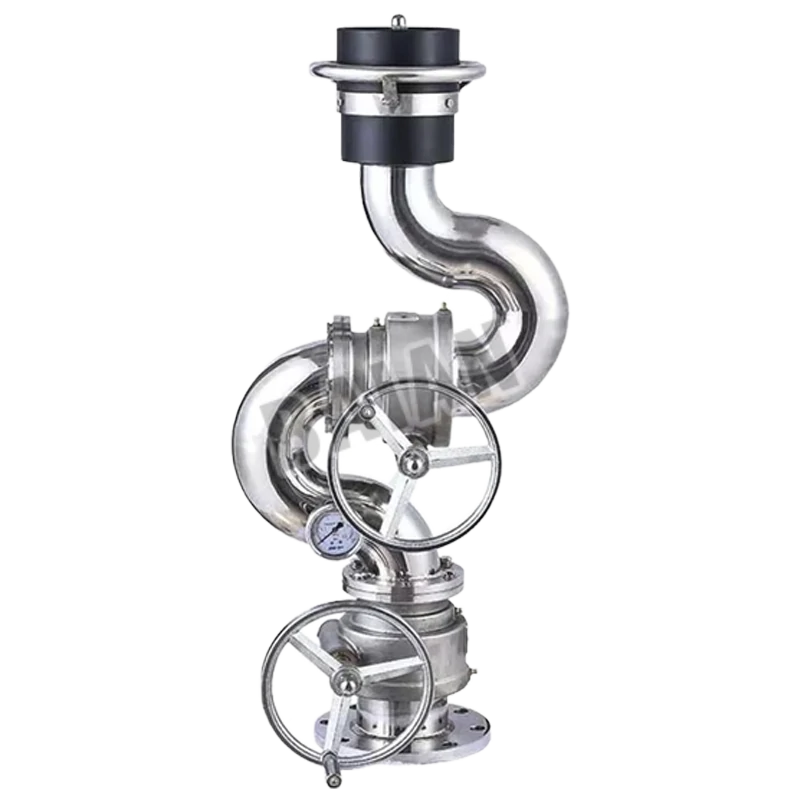

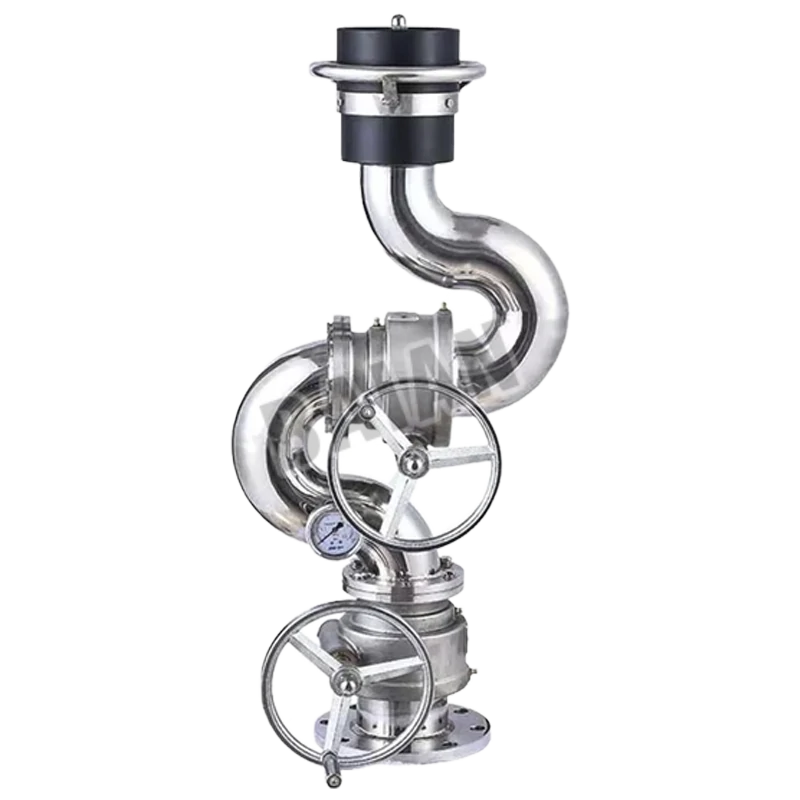

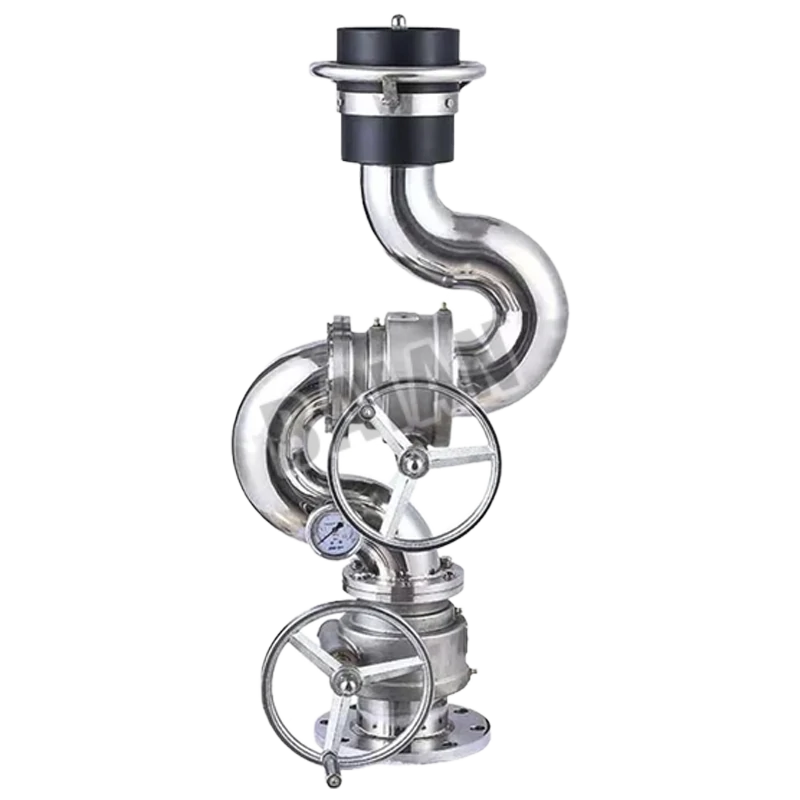

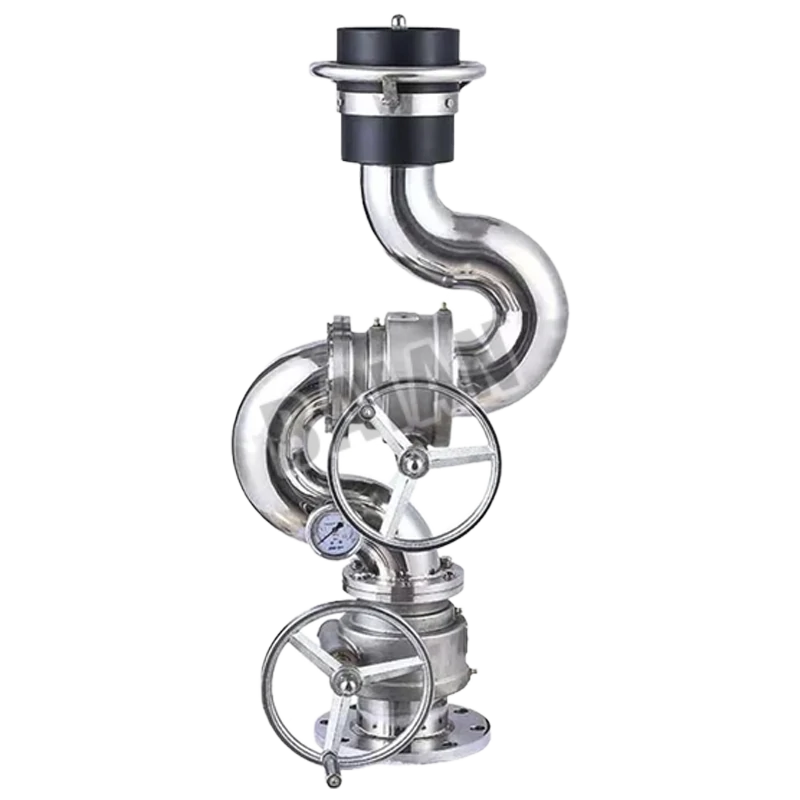

Large Flow Stainless Steel Manual Fire Water Monitor

Large Flow Stainless Steel Manual Fire Water Monitor
PS10/60-80-W-W(3600-4800LPM)

Specifications

1. Material: SS304 material structure;
2. Operation: wheel control, horizontal 360° rotation; vertical -15° to +60° lifting;
3. Spray mode: DC, mist;
4. Flange standard: BS4504, ANSI150, GB, etc.
5. Flow rate: ≥6000 L/min (starting from about 1600 GPM), up to 12,000+ L/min (large industrial grade).
6. Diameter: DN125 (5") to DN200 (8") or larger.
7. Range: DC range ≥70 meters (over 100 meters at high pressure), wide spray coverage.
8. Installation: Heavy-duty flange base, fixed to concrete/steel frame.

Applications

1. Ultra-large fire source scene: petrochemical storage tank area, large oil depot, LNG receiving station.
2. Open large space: airport apron, port terminal, large warehouse, power plant coal yard.
3. High-risk corrosive environment: offshore drilling platform, chemical plant, acid and alkaline material storage area.
4. Replace fixed spray: protect super-large equipment (such as refining reaction tower, giant storage tank).

Working principle

1. Connect water source: connect fire pump/pipeline network (high-pressure water) at the inlet.
2. Manual control:
Rotate the valve handwheel to open a large flow of water;
Adjust the pitch/horizontal handwheel to aim at the fire point;
Switch the gun head to direct current (long-range) or spray (coverage) mode.
3. Jet fire extinguishing: high-pressure water flow directly impacts the fire source or forms a protective water curtain.

Core features

1. Super large flow: quickly suppress fierce fire and cover a wide range.
2. Extremely corrosion-resistant: stainless steel structure resists chemicals/salt spray and has a service life of 20 years+.
3. Pure mechanical reliability: no power dependence, 100% available in harsh environments.
4. Ultra-long range: Cross obstacles and reach the center of the fire (such as the top of the oil tank).
5. Heavy-duty design: withstand high pressure (≥1.6 MPa), anti-vibration, suitable for industrial scenarios.

Rated pressure

1.0–1.4 MPa (10–14 bar)
