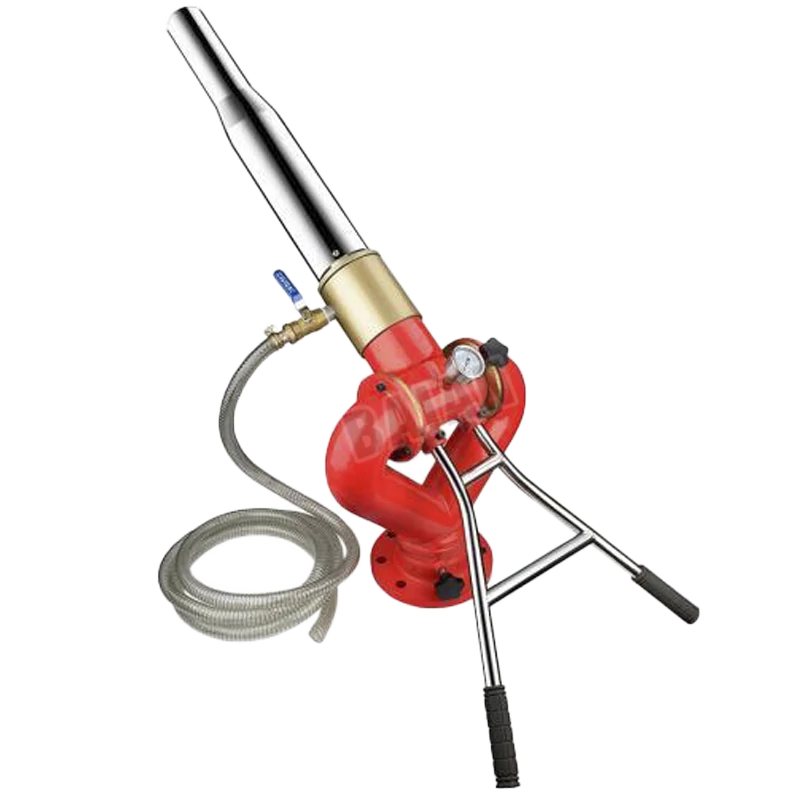

Joystick Aluminum Alloy Manual Fire Water Foam Monitor

Joystick Aluminum Alloy Manual Fire Water Foam Monitor
PLZ8/24-48(1440-2880LPM)

Specifications

1. Flow rate: 24-48L/s
2. Spray mode: DC;
3. Operation: 360° horizontal rotation, -15° to +60° vertical lifting;
4. Flange standards: BS4504, ANSI150, GB, etc.
5. Piping length 3 meters

Application scenarios

1. Firefighting: extinguishing industrial fires (such as oil depots, chemical plants), forest fires, or large building fires.
2. Special environments: suitable for LNG (liquefied natural gas) facilities (resistant to -162°C low temperature), ships and corrosive environments (aluminum has excellent corrosion resistance)

Working principle

1. Manual control: adjust the spray angle (pitch/horizontal rotation) and water flow/foam switching valve through the joystick.
2. Medium switching: manually select pure water or foam mixture, and transport it to the nozzle for atomization spraying through the built-in pipeline.

Features

1. Lightweight and high strength: Aluminum alloys increase their strength at low temperatures, making them suitable for extreme environments
2. Corrosion resistance: Aluminum naturally forms an oxide film to resist corrosion from water, foam, and chemicals
3. Rapid heat dissipation: Aluminum's thermal conductivity is about three times that of iron, which prevents high-temperature deformation
4. Environmentally friendly and recyclable: Aluminum alloys have a high recycling rate, reducing life cycle costs

Working pressure

Standard range: Usually 6~12 bar (about 0.6~1.2 MPa), high-pressure design ensures long-distance spraying (range up to 60~100 meters).
