Intelligent Sounder Strobe

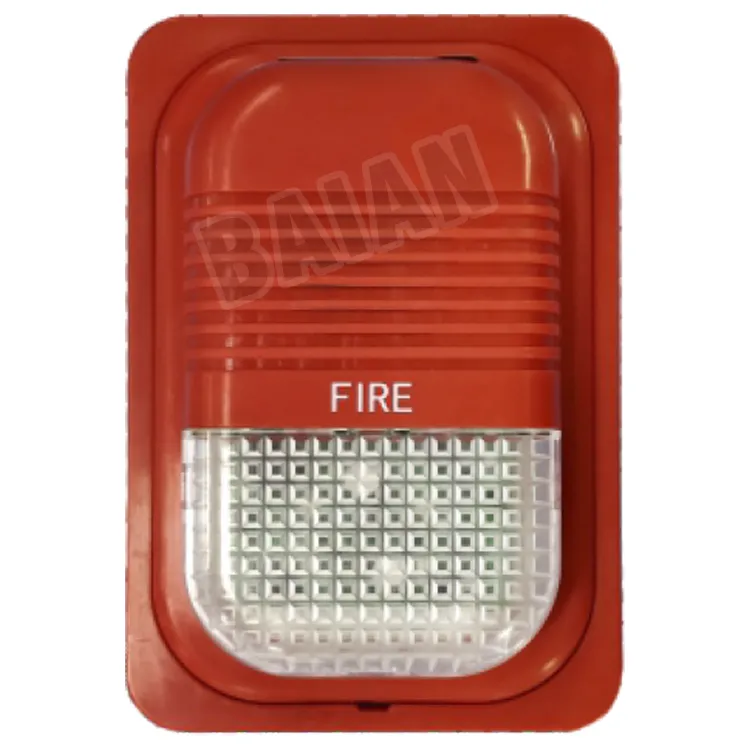

J-EI8085 Intelligent Sounder Strobe

Specification

1.Working voltage: DC24V pulsating voltage;
2.Standby current≤350uA;
3.Alarm current ≤5mA;
4.Wire mode:two bus (no polarity)
5.Bus length:≤1500 meters (cross-sectional area 1.5mm² copper twisted pair);
6.Alarm sound pressure grade:75dB~115dB(A weighting) at a distance of 3m directly in front
7.Modulation cycle:1.5s~5s; Flash frequency: 1Hz~1.5Hz
8.Category:Indoor
9.Ambient temperature:-10℃~+55℃;
10.Relative humidity:≤95%RH(non-condensing)
11.Protection grade: IP30
