Infrared Linear Beam Smoke Detector

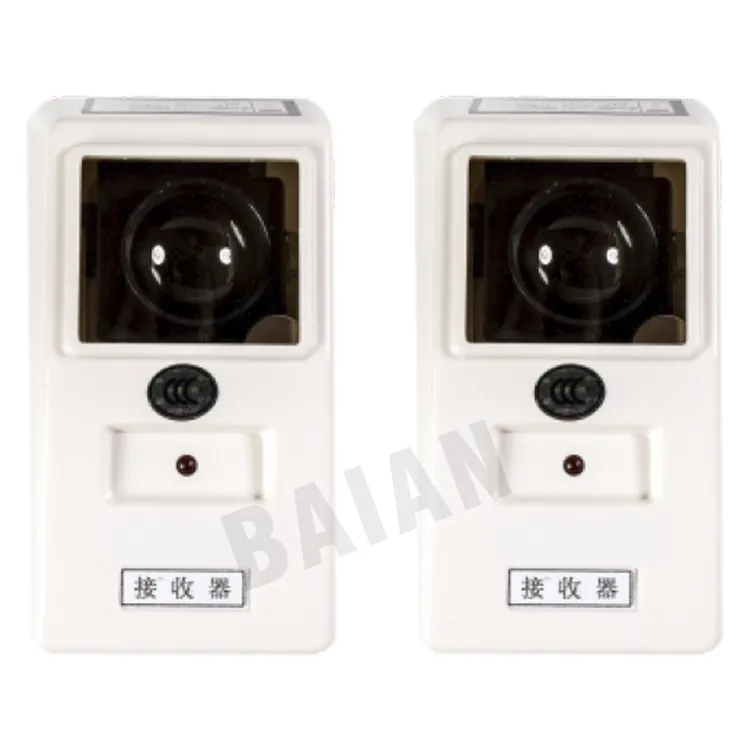

HZ910 Infrared Linear Beam Smoke Detector

Specification

1.Output mode: relay type, one set of fault output, one set of alarm output
2.Working voltage: DC24V
3.Working current:<3mA
4.Standby power:<1W
5.The longest distance to the beam:100m,the minimum distance:5m
6.Maximum optical path direction deviation:±1°
7.Alarm threshold: 1.5dB
8.Protection range:7 meters on the left and right sides of the ray, that is, the distance between the two pairs of detectors is 14 meters
9.Ambient temperature:-10℃~50℃,
10.Relative humidity:≤95% RH(40℃±2℃)
