Description

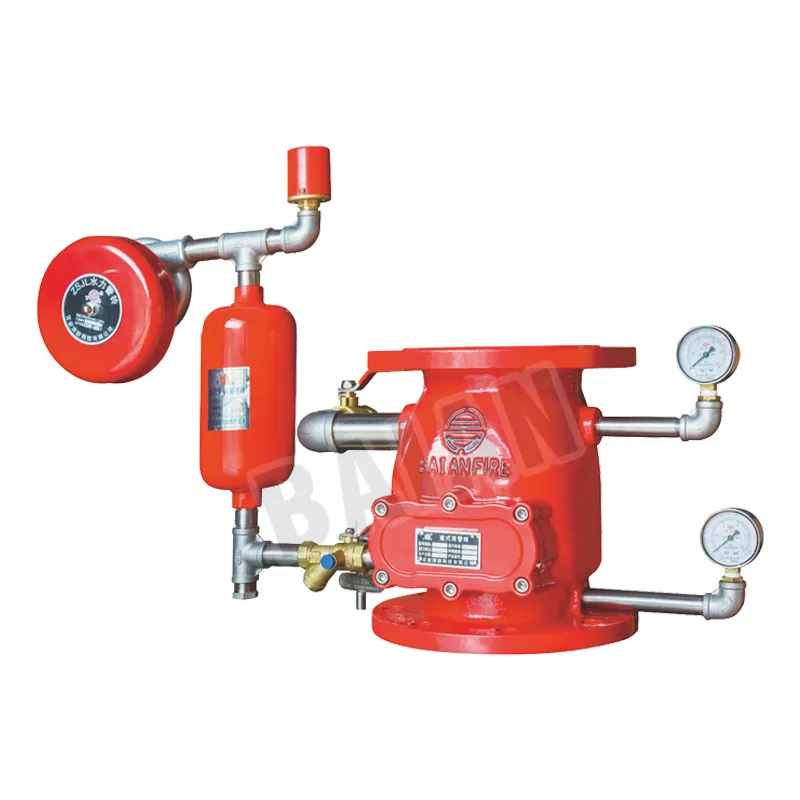

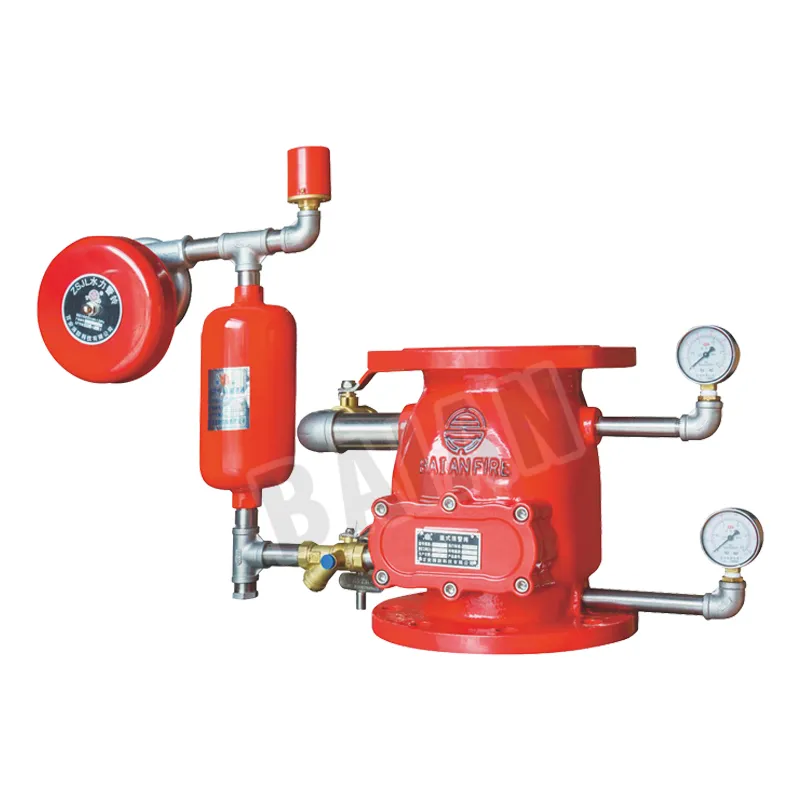

Flange Ends Wet Check Alarm Valve-B

Product Introduction

Body Material: Ductile Iron,QT450;
Flange Standard :BS4504&ANSICLASS150#
Seal Disc Material: 304 Stainless Steel With NBR;
Ball Valve &Strainer &Check Valve: Brass Standard, (Stainless Steel Optional);
Retard Chamber: Carbon Steel Standard, (Stainless Steel Optional);
Water Motor Gong: Carbon Steel Standard, (Stainless Steel Optional);
Piping Accessories: Galvanized Pipe Standard, (Stainless Steel Optional);

Technical Parameters

Model Number	Size	Working Pressure	Sealing testing pressure	Installation	Connection	Flange Standard
ZSFZ 80	DN80( 3’’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
ZSFZ 100	DN100( 4’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
ZSFZ125	DN125( 5’’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
ZSFZ150	DN150( 6’’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
ZSFZ200	DN200( 8’’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
ZSFZ250	DN250( 10’)	16 bar	24 bar	Vertically	Flange × Flange	BS4504/ANSI150#
