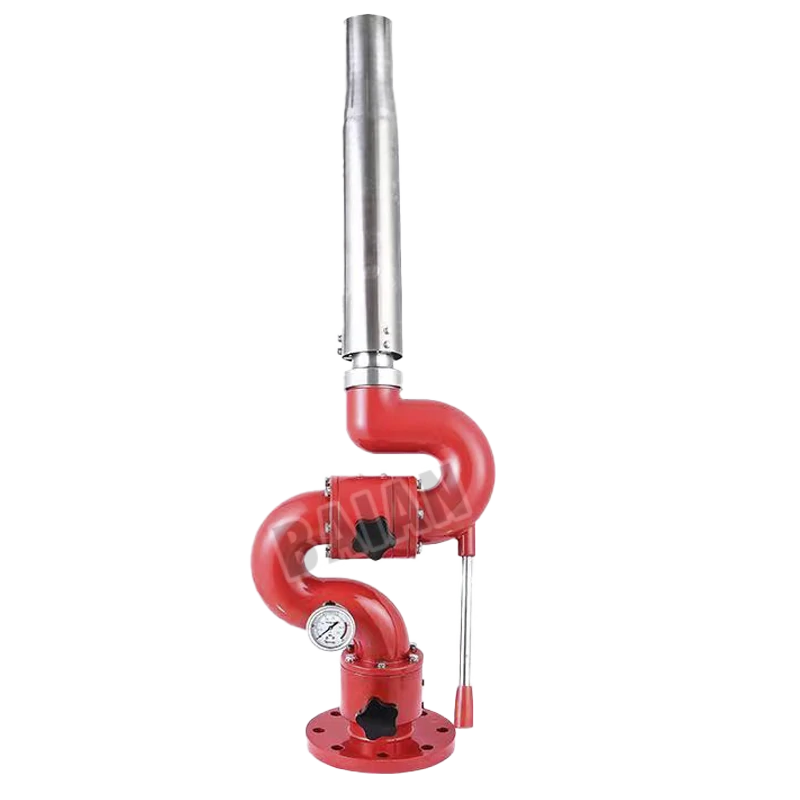

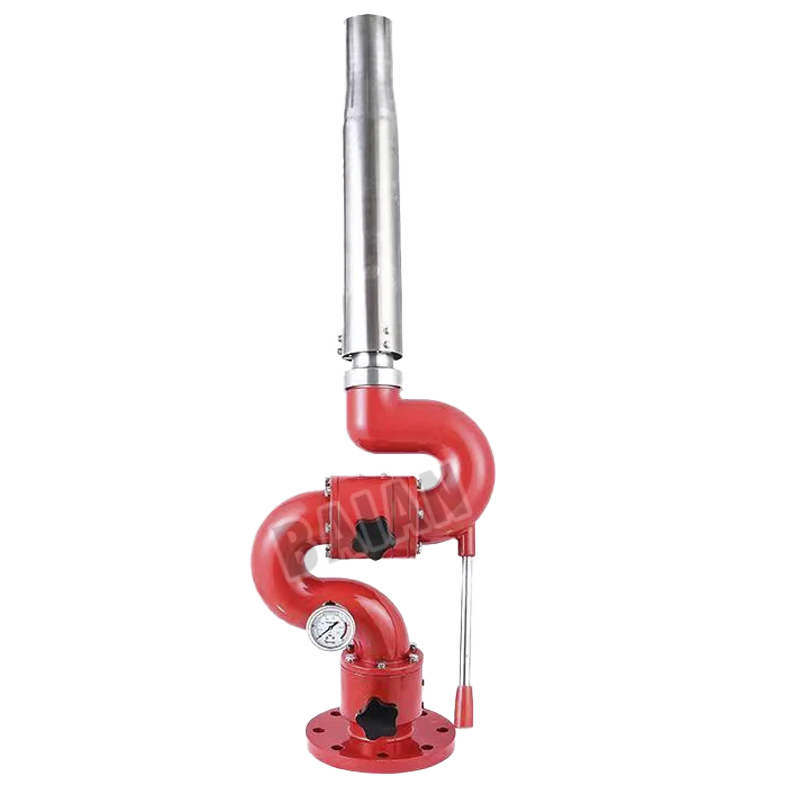

Fixed Station Aluminum Alloy Manual Fire Water Foam Monitor

Fixed Station Aluminum Alloy Manual Fire Water Foam Monitor
PL8/24-48(1440-2880LPM)

Specifications

1. Material: aluminum alloy structure, anodized hard coating;
2. Flow rate: 24-48 liters/second
3. Spray mode: DC;
4. Operation: 360° horizontal rotation; vertical -15° to +60° lifting;
5. Flange standards: BS4504, ANSI150, GB, etc.

Applications

1. Lightweight demand scenarios:
Ship deck, offshore platform (load reduction)
Mobile fire truck top gun position (lower center of gravity)
2. Flammable liquid fire:
Oil depot, chemical plant tank area (foam suppression of oil fire)
Airport hangar (quick coverage of aviation fuel fire)
Automobile fuel warehouse

Working principle

1. Dual-mode fire extinguishing medium switching:
Pure water mode: directly connect to the fire pipe network, spray high-pressure water column to extinguish Class A solid fire.
Foam mixing mode: automatically mix foam liquid and water according to the set ratio (3%~6%) through the proportion mixer (built-in or external) to generate fire extinguishing foam
2. Manual operation process:
Open the water source → connect the foam liquid pipeline → adjust the gun head to the foam spray mode → manually rotate/elevate to aim at the fire source → control the flow rate with the valve.
3. Foam action mechanism:
Covering and suffocation: the foam layer isolates the fuel and oxygen.
Cooling and cooling: water evaporation absorbs heat.
Steam dilution: block the volatilization of combustible gases.

Core features

1. Lightweight design.
2. Double-effect fire extinguishing capability.
3. Corrosion resistance and maintenance-free.
4. Environmental compatibility.

Rated pressure

1. Water spray: 0.7~1.2 MPa (flow rate is positively correlated with range, typical range ≥60 meters at 1.0 MPa).
2. Foam spray: 0.8~1.0 MPa (ensure the foam expansion multiple ≥5 times).
