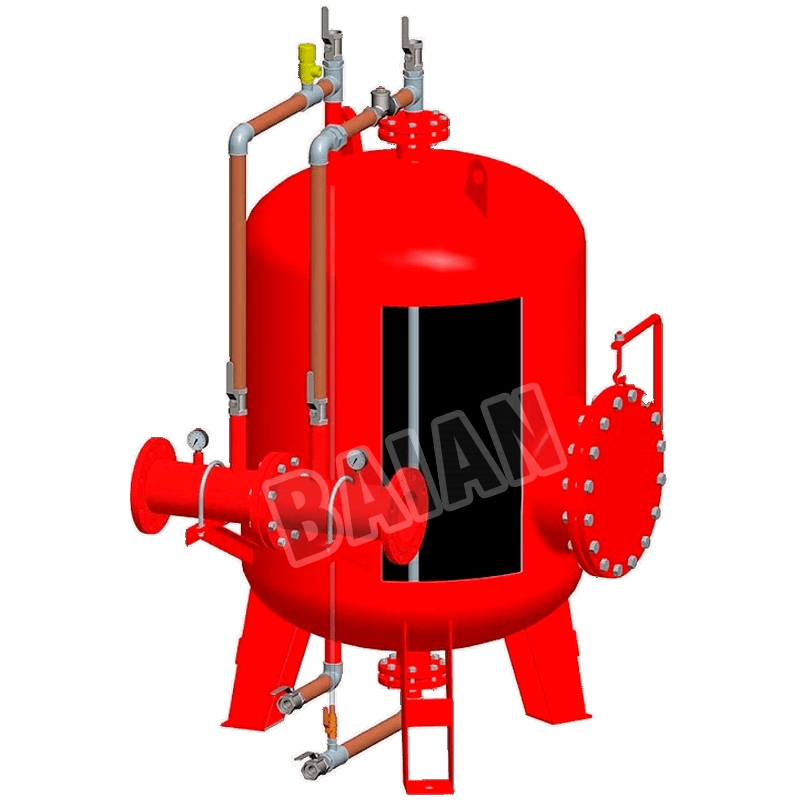

Fixed Foam Bladder Tank Vertical Type

Manually operated, this Foam storage equipment features ANSI/BS4504/GB flanges. The valve body is carbon steel with a rubber liner. Components like the proportioner, ball valve, safety valve, and pipeline system are standard carbon steel (SS304 optional).

Inquiry Now

Fixed Foam Bladder Tank Vertical Type

Dimensions
Model   Number Capacity Gallon Style Working Pressure Ration Flange Flow rate
PHYML-200 200liters 50Gallon Vertical,Fixed 6-12Bar 3% or 6% 2 1/2'' 4L/S
PHYML-500 500liters 125Gallon Vertical,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYML-1000 1000liters 250Gallon Vertical,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYML-1500 1500liters 375Gallon Vertical,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYML-2000 2000liters 500Gallon Vertical,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYML-2500 2500liters 625Gallon Vertical,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYML-3000 3000liters 750Gallon Vertical,Fixed 6-12Bar 3% or 6% 6'' 8-64L/S
PHYML-4000 4000liters 1000Gallon Vertical,Fixed 6-12Bar 3% or 6% 6'' 8-64L/S
PHYML-5000 5000liters 1250Gallon Vertical,Fixed 6-12Bar 3% or 6% 8'' 8-64L/S

Specifications

1. Operation: Manual
2. Proportioner flange standard: ANSI / BS4504 / GB;
3. Valve body material: carbon steel;
4. Liner material: rubber;
5. Proportioner: standard carbon steel (SS304 stainless steel optional);
6. Ball valve: standard brass (SS304 stainless steel optional);
7. Safety valve: standard brass (SS304 stainless steel optional);
8. Pipeline system: standard carbon steel (SS304 stainless steel optional);

Application scenarios

1. Foam fire extinguishing system: protect Class B fire high-risk areas such as oil depots, chemical plants, and airport fuel depots.
2. Space-constrained scenarios: vertical design saves floor space (40% less space than horizontal).
3. Anti-cross contamination: The capsule physically isolates the foam liquid from water to avoid premix failure.

Working principle

1. Water injection and pressurization: Fire water is injected into the outer cavity of the capsule → squeezes the foam liquid in the capsule.
2. Quantitative delivery: The foam liquid is squeezed out to the proportion mixer (such as 3%/6% concentration) → mixed with water flow and sprayed.
3. Automatic switching: After the capsule is emptied, the water flow is directly output (the system seamlessly switches to pure water fire extinguishing).

Features

1. Zero residue design: Capsule shrinkage rate > 95%, foam liquid utilization rate is extremely high (residue < 1%).
2. Visual monitoring: liquid level gauge + pressure gauge dual indication (pressure drop alarm when the capsule ruptures).
3. Fast filling: reserve the foam liquid injection port, replenishment does not need to empty the system.

Working pressure

1. Design pressure: 1.0~1.6 MPa (in accordance with NFPA 11 standards), bursting pressure ≥ 3 times the working pressure.
2. Capsule pressure resistance: 0.3~1.2 MPa (low pressure start, high pressure seal anti-leakage).
