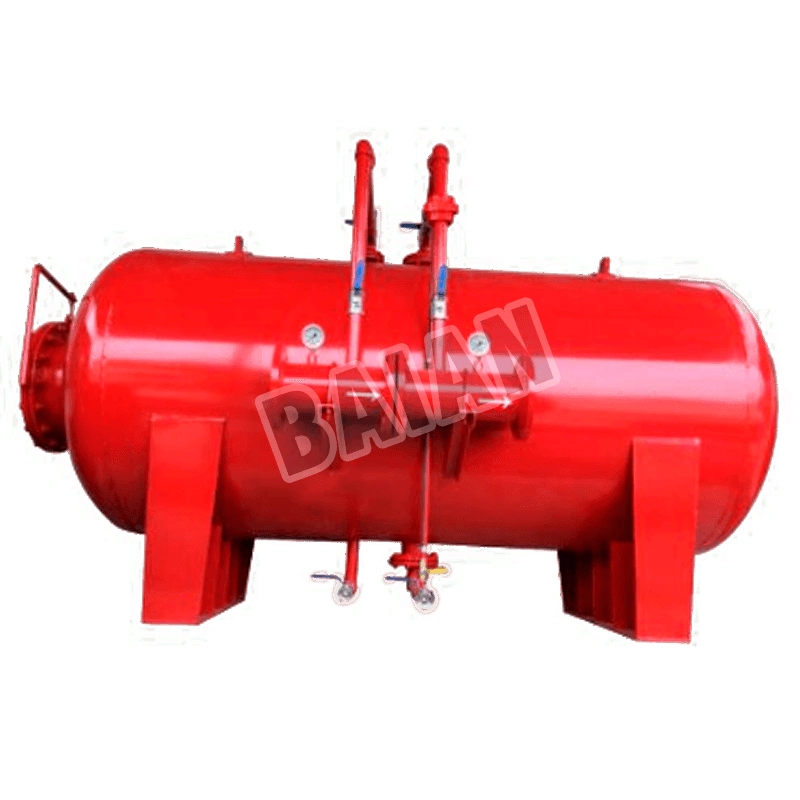

Fixed Foam Bladder Tank Horizontal Type

The Fixed Foam Bladder Tank Horizontal Type features a manual structure, proportioner flange to ANSI/BS4504/GB standards, carbon steel valve body with rubber liner, and carbon steel proportioner, ball valve, safety valve, and pipeline system (SS304 stainless steel optional for all).

See more at Foam Storage Equipment Catalog!

Inquiry Now
Categories: , Tag:

Fixed Foam Bladder Tank Horizontal Type

Dimensions
Model   Number Capacity Gallon Style Working Pressure Ration Flange Flow rate
PHYM-1000 1000liters 250Gallon Horizontal,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYM-1500 1500liters 375Gallon Horizontal,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYM-2000 2000liters 500Gallon Horizontal,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYM-2500 2500liters 625Gallon Horizontal,Fixed 6-12Bar 3% or 6% 4'' 8-64L/S
PHYM-3000 3000liters 750Gallon Horizontal,Fixed 6-12Bar 3% or 6% 6'' 8-64L/S
PHYM-4000 4000liters 1000Gallon Horizontal,Fixed 6-12Bar 3% or 6% 6'' 8-64L/S
PHYM-5000 5000liters 1250Gallon Horizontal,Fixed 6-12Bar 3% or 6% 8'' 8-64L/S
PHYM-6000 6000liters 1500Gallon Horizontal,Fixed 6-12Bar 3% or 6% 8'' 64-128L/S
PHYM-8000 8000liters 2000Gallon Horizontal,Fixed 6-12Bar 3% or 6% 8'' 64-128L/S
PHYM-10000 10000liters 2500Gallon Horizontal,Fixed 6-12Bar 3% or 6% 10'' 64-128L/S

Specifications

1. Structure: Manual
2. Proportioner flange standard: ANSI / BS4504 / GB;
3. Valve body material: carbon steel;
4. Liner material: rubber;
5. Proportioner: standard carbon steel (SS304 stainless steel optional);
6. Ball valve: standard brass (SS304 stainless steel optional);
7. Safety valve: standard brass (SS304 stainless steel optional);
8. Pipeline system: standard carbon steel (SS304 stainless steel optional);

Application scenarios

1. Large flow suppression system: petrochemical storage tank fire embankment, airport fuel depot (single tank liquid supply ≥50,000L).
2. Low space deployment: height ≤2.5m (suitable for height-restricted plant/tunnel fire protection).
3. Earthquake-prone areas: horizontal low center of gravity design (certified by IBC 2018 Seismic Design Category D).

Working principle

Pressure fire water → Inject into the tank from the end → Uniformly squeeze the capsule → Zero residual output of foam liquid → Proportional mixer (3%/6%) → Cover the burning liquid surface to suffocate the fire

Features

1. Seismic stability
2. Ultra-large capacity support
3. Convenient maintenance
4. Mixing efficiency

Working pressure

1. Design pressure: 1.0~1.6 MP (PN16)
2. Capsule working pressure: 0.3~1.2MPa

Fixed Foam Bladder Tank Horizontal Type
