Description

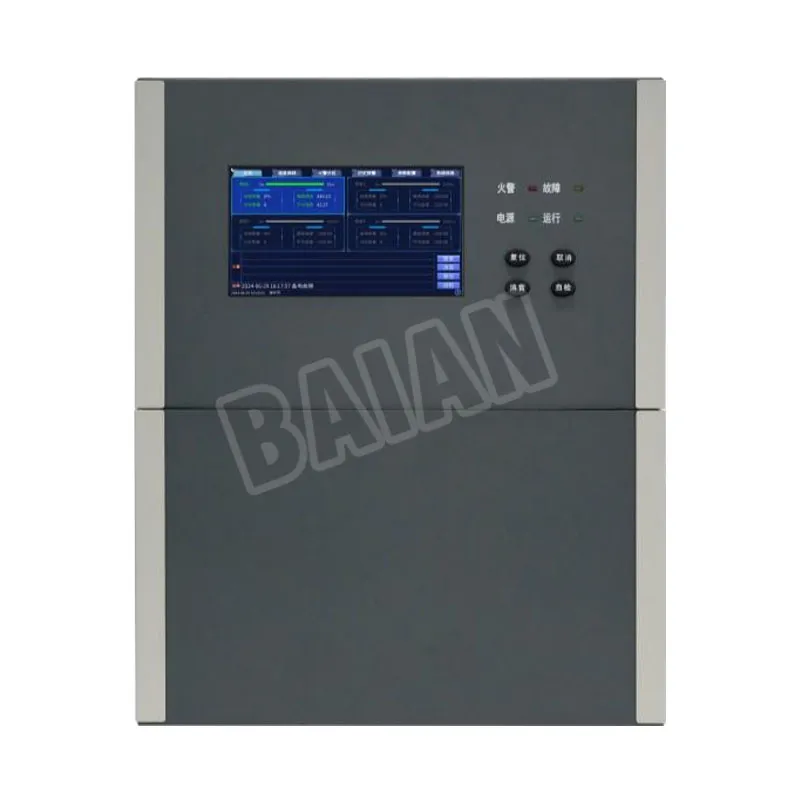

Distributed Fiber Optic Linear Heat Detector

JTW-DTS-EI9017

Distributed Fiber Optic Linear Heat Detector

Features

1. The main unit adopts a modular architecture design, with a minimum spatial resolution of ±0.4 meters. It supports a graphical interface, a built-in web server, and centralized management.
2. It features automated Raman optics calibration parameter calibration, a built-in calibration sensor, and one-click automatic parameter adjustment.
3. It supports various data protocols such as Modbus RTU and Modbus TCP, facilitating one-click automatic parameter adjustment for third-party backup.
4. It supports automatic fiber optic temperature calibration, curve display and polling, automatic detection of fiber optic installation quality and fiber length, zone management, and alarm display.
5. The sensor uses ordinary multimode fiber, allowing for flexible installation regardless of terrain or harsh environments, making it suitable for pipe racks, tunnels, subways, power, and petrochemical fields.
6. System composition: It consists of a main unit (signal processing unit) and detection optical cables (sensitive components), and is compatible with E18000 and E19000 series controllers to transmit temperature alarm data.

Technical Parameter

Operating Environment	Temperature: -10℃~50℃; Humidity: ≤95%RH (non-condensing)
Fiber Optic Parameters	Fiber type: Multimode fiber (62.5/125um); Fiber connector: E2000/APC
Measurement Parameters	Measurement channels: 4 channels; Measurement distance: 10km (standard), maximum support 12km
Spatial Resolution	Standard: ±1m, maximum support ±0.4m
Positioning Accuracy	Standard: ±1m, maximum ±0.4m
Measurement Time	Typical value 3S/channel (within 10km)
Alarm Activation Temperature	60℃, 70℃, 85℃, supports differential temperature alarm
Temperature Measurement Range	Standard temperature measurement fiber optic cable: -50℃-120℃ (long-term -4℃) 5℃-85℃
	Special high-temperature resistant armored optical cable: -50℃-420℃ (long-term -45℃-300℃)
Temperature Measurement Accuracy	±0.1℃ (related to fiber location, measurement time, etc.); temperature resolution 0.01℃
Power Supply	Standard power supply: DC24V/2A
External Display	Standard 7-inch touchscreen LCD, capable of displaying temperature curves, optical cable construction quality, and other functional units
Communication Interface	1 RJ45 network port; 1 RS485 port; 1 CAN port; 8 relay ports; 2 USB interfaces;
Dimensions	348mm×90mm×430mm (width×thickness×height)
Note: Temperature measurement accuracy varies slightly depending on the fiber type and length; the parameters listed are based on typical conditions.
