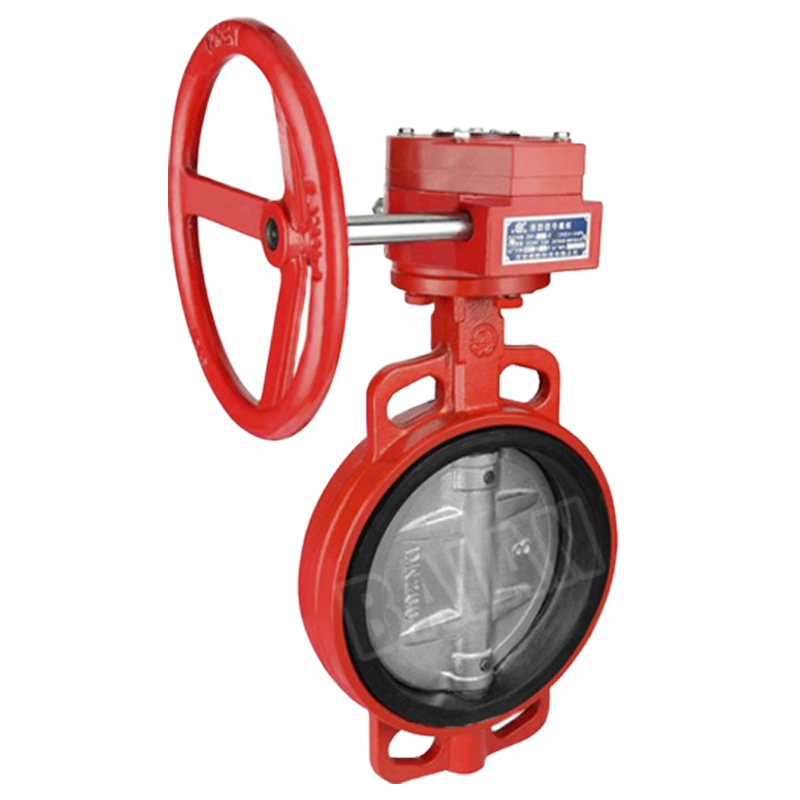

D371X-16Q Wafer Type Wafer Turbine Butterfly Valve

The D371X-16Q Wafer Type Turbine Butterfly Valve uses a turbine drive for high-torque operation, rotating the disc 90° for on/off or flow control. Suitable for large-diameter, medium-high pressure pipelines (PN16-PN25), it offers low flow resistance, 0°C-80°C range, and epoxy coating for durability.

See the Butterfly Valve for more information

Inquiry Now

D371X-16Q Wafer Type Wafer Turbine Butterfly Valve

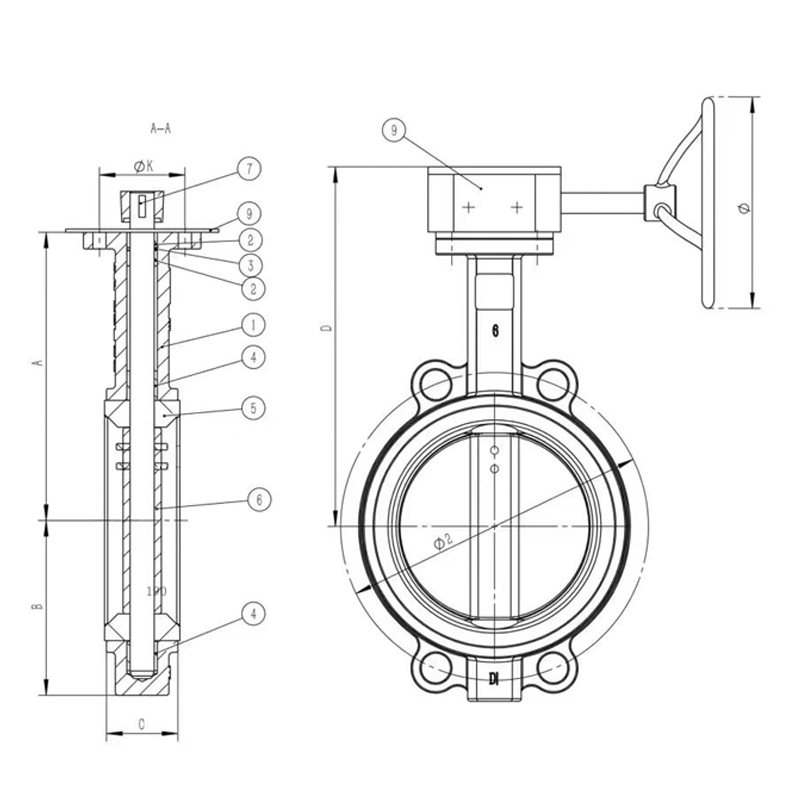

MATERIAL SPECIFICATION
No. Name Quantity Material No. Name Quantity Material
1 Valve body 1 QT450-10 7 Key 1 45#
2 Bushing (short) 2 F4 8 Chainring 1 Q235
3 O ring 1 NBR 9 Manual head 1 HT250
4 Bushing (long) 2 F4 10 Handle 1 Aluminum
5 Valve seat 1 NBR 11 Handle spring   button 1 Aluminum
6 Valve plate 1 QT450-10 12 Handle spring 1 65Mn



DIMENSIONS
DN A B C D L h Ø Ø1 Ø2 N-Ø3 ØK
50 128 73 42 201 190 32 150 125 120 4-19 57.15
65 137 82 44.7 212 190 32 150 145 140 4-19 57.15
80 142 91 45.2 217 190 32 150 160 150 8-19 57.15
100 164 107 52.1 239 250 32 150 180 175 8-19 69.85
125 176 127 54.4 251 270 32 150 210 210 8-19 69.85
150 198 143 55.8 273 270 32 150 240 240 8-23 69.85
200 230 170 60.6 313 359 45 300 295 290 8-23/12-23 88.9
250 292 203 65.6 375 359 45 300 350/355 355 12-23/12-28 88.9
300 337 242 74 420 359 45 300 400/410 400 12-23/12-28 107.95
350 368 267 76.17 451 45 300 460/470 445 16-23/16-28 107.95
400 400 309 86.5 591 51.2/72 300 515/525 510 16-28/16-31 158.75
450 422 328 105.6 633 51.2/72 300 565/585 565 20-28/20-31 158.75
500 480 361 131.8 690 64.2/82 300 620/650 620 20-28/20-34 158.75
600 562 459 152 770 70.2/82 300 725/770 730 30-31/20-37 215.9

PRODUCT DESCRIPTION

1.The wafer turbine butterfly valve is a butterfly valve that uses a wafer connection and a turbine transmission device.
2.The turbine reduction mechanism drives the valve plate to rotate, achieving high torque and labor-saving operation.
3. It is suitable for opening and closing and flow regulation of medium- and high-pressure, large-diameter pipelines.
4.Open: Rotate the turbine handwheel clockwise, and the worm drives the valve stem to rotate 90°, the valve plate is parallel to the pipeline, and the fluid channel is fully open.
5.Close: Rotate the handwheel counterclockwise, the valve plate cuts off the fluid vertically, and the sealing ring is pressed to achieve tight closure.
6.Flow regulation: The valve plate opening (0°~90°) is accurately controlled by the handwheel rotation angle to achieve linear flow regulation.

FEATURES

1.Low flow resistance and high efficiency: the flow channel is straight when fully open, and the pressure loss is small (only 10%~20% of the pipeline resistance).
2.Strong durability: the turbine box has a high protection level and is suitable for outdoor or harsh environments.
3.Limitations:The volume and weight are large, and the installation requires reserved operating space.
4.The cost is higher than the handle butterfly valve, and the maintenance complexity is slightly higher.

APPLICATION

1.Municipal engineering: large water supply network, sewage treatment plant pump station opening and closing and flow control.
2.Petrochemical: medium and high pressure pipelines for crude oil and chemical media (such as PN16~PN25).
3.Power industry: circulating water system, cooling water pipeline regulation.
4.Industrial system: large-diameter air ducts for ventilation, dust removal and flue gas treatment (such as DN1000 and above)

WORKING PRESSURE

Maximum working pressure 16 bar (230psi).

STANDARD

Product testing is carried out in accordance with GB/T13927 Industrial valve pressure test.

TEMPERATURE RANGE

0 °C to 80°C.

COATING

Fusion Bonded Epoxy Coating.
