Conventional Smoke Detector

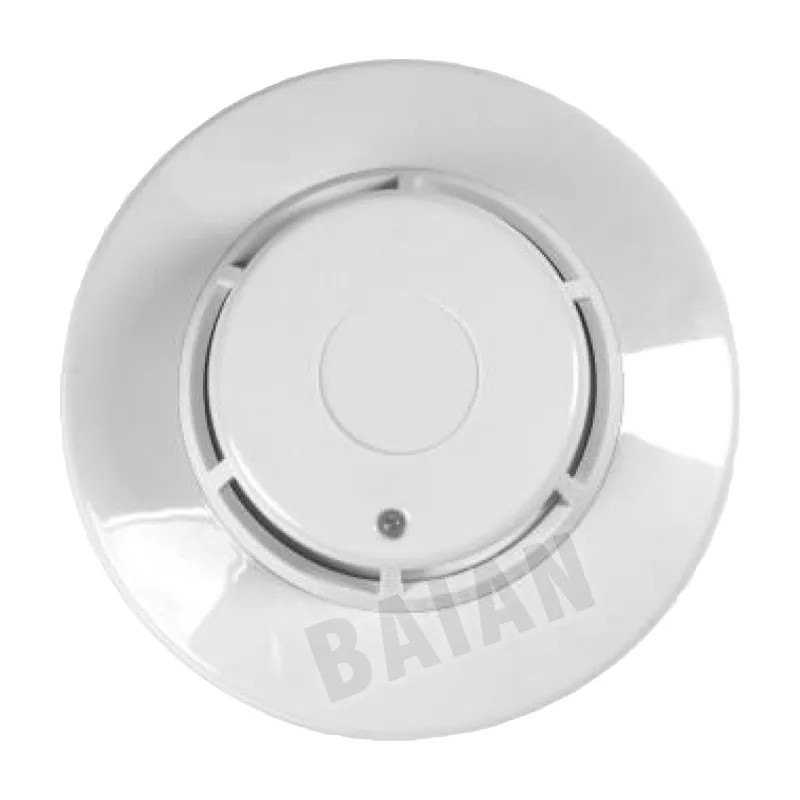

N-6012SN Conventional Smoke Detector

Features

4 terminals, combined with 6032 relay module, can control the door light to be on and off

Specification

1.Ambient temperature:-10℃~+50℃
2.Relative humidity:≤95% RH (non condensing)
3.Bus working vottage:DC24V pulsating voltage
4.Signal attenuation:0.06db/m-0.3db/m
5.Wind speed:<5m/s
6.Alarm confirmation light: red,the alarm is keeps on
7.Inspection indicator:green, flashing
8.Protection grade:IP30
9.Standby current:<0.35mA
10.Alarm current:<0.8mA
11.Protected area:60 m²
12.Wire mode:two bus,no polarity
13.Bus length:≤2000m
