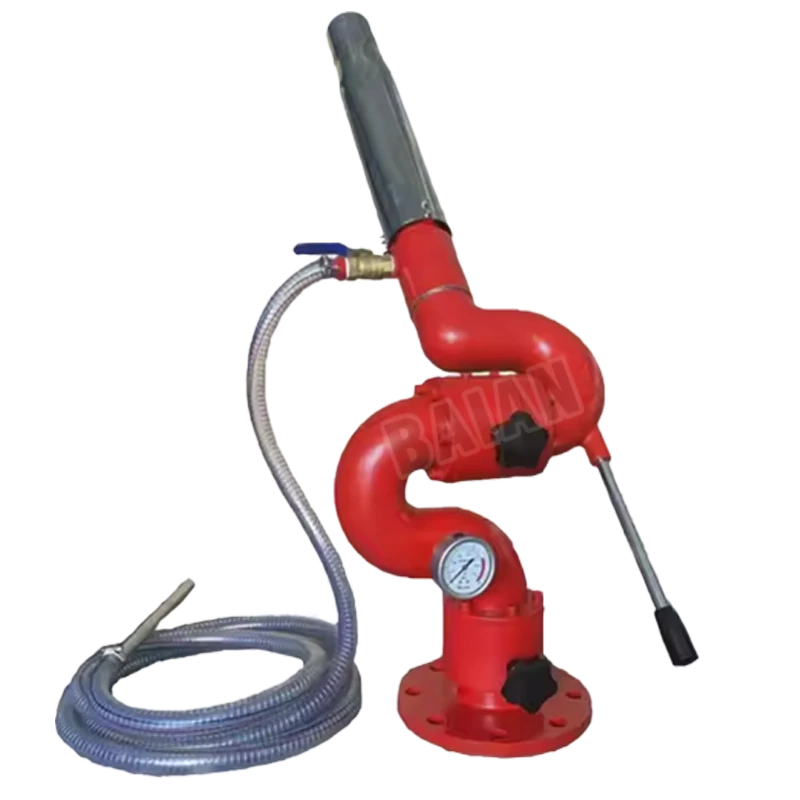

Aluminum Alloy Manual Fire Water Foam Monitor For Industrial System

Aluminum Alloy Manual Fire Water Foam Monitor For Industrial System
PL8/24-48(1440-2880LPM)

Specifications

1. Material: aluminum alloy structure, anodized hard coating;
2. Flow rate: 24-48 liters/second
3. Spray mode: DC;
4. Operation: 360° horizontal rotation; vertical -15° to +60° lifting;
6. Flange standard: BS4504, ANSI150, GB, etc.

Industrial application occasions

1. Petrochemical and chemical plants
Storage tank area (oil/solvent fire)
Around the reactor (rapidly cover the leaking fire)
Loading and unloading trestle (mobile fire source extinguishing)
2. Energy facilities
Liquefied natural gas (LN G) Receiving station (-162℃ low temperature tolerance)
Coal chemical plant (resistant to coal dust corrosion)
3. High-risk storage
Hazardous chemical warehouse (acid/alkali environment compatible)
Fuel depot (foam suffocates oil surface fire)
4. Pharmaceutical and food industry
Ethanol extraction workshop (explosion-proof design)
Edible oil storage tank (food-grade foam compatible)

Working principle

1. Independent control of dual fluids: water and foam liquid are mixed in precise proportions in the mixing chamber inside the gun body (error ≤±0.5%), and expanded and foamed through the gun head foam generator (foaming multiple ≥5:1).
2. Human-machine control: anti-slip handwheel adjusts the pitch/horizontal angle, and the graduated valve accurately controls the flow (supports fast start and stop).

Features

1. Extreme environment tolerance
2. Lightweight and strong load-bearing
3. Explosion-proof and safe
4. Quick response
5. Ultra-low maintenance

Rated working pressure

0.8~1.2 MPa
