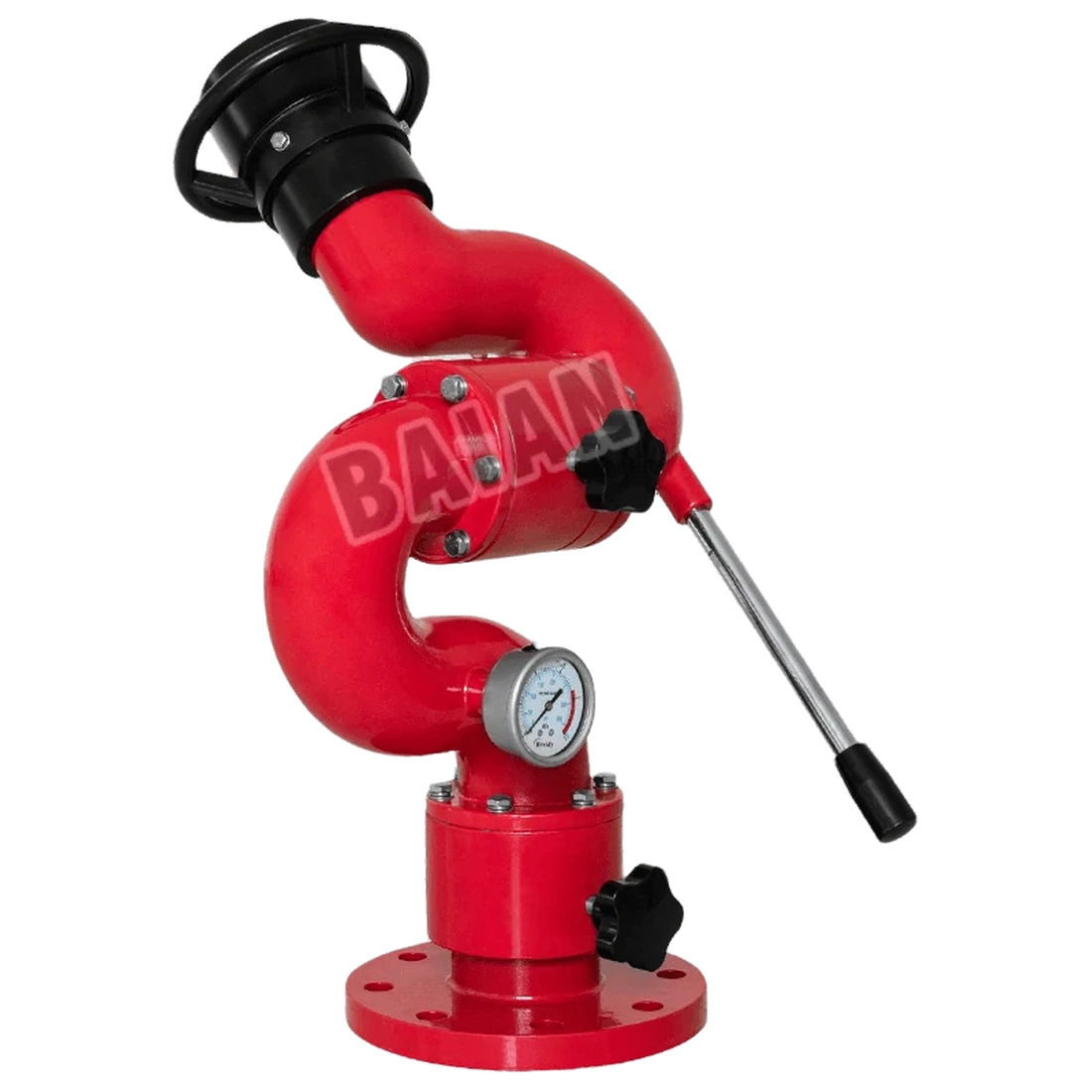

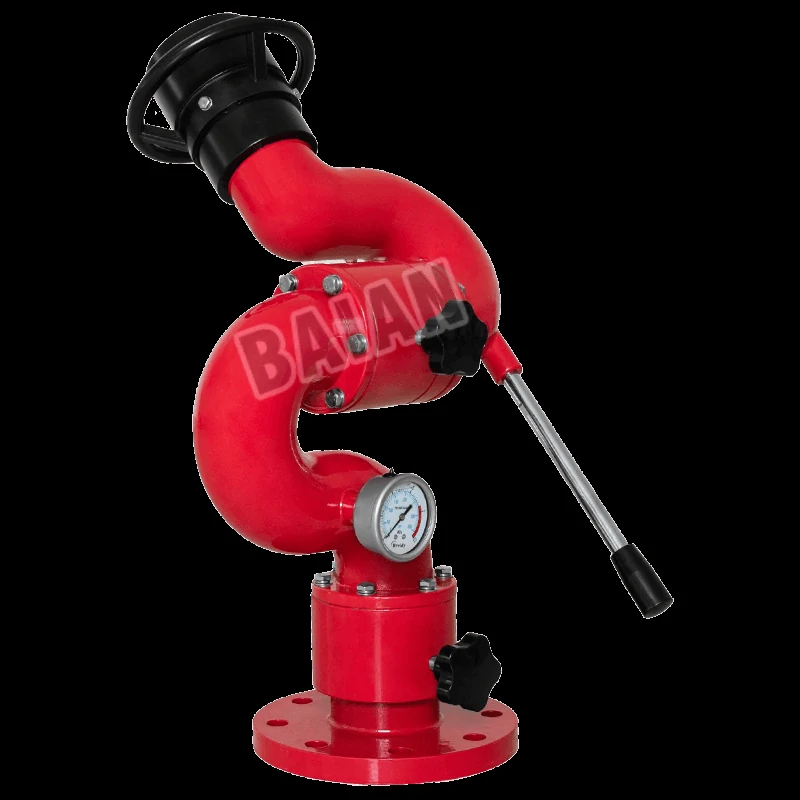

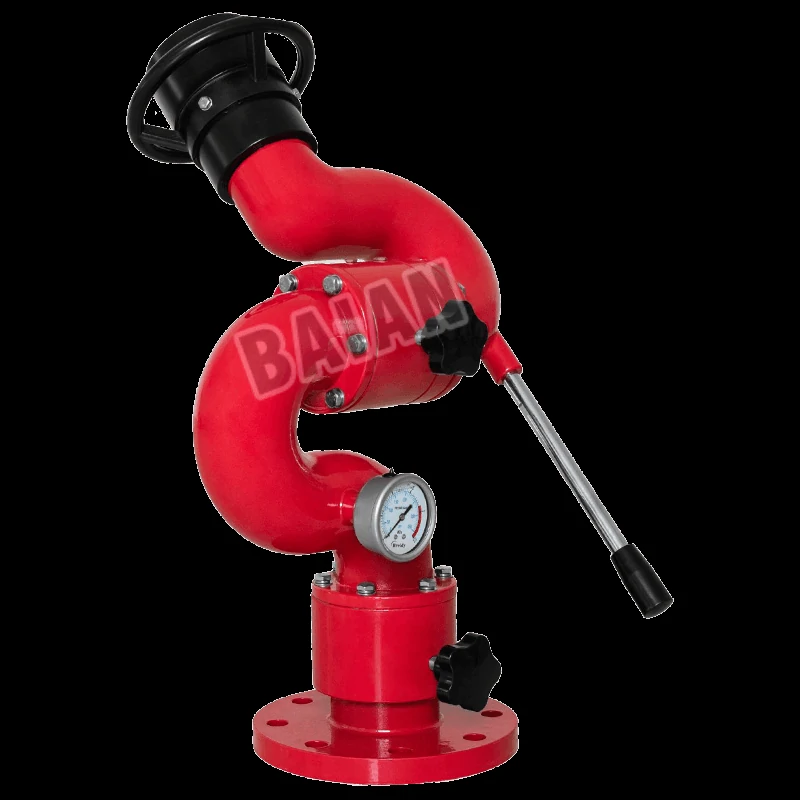

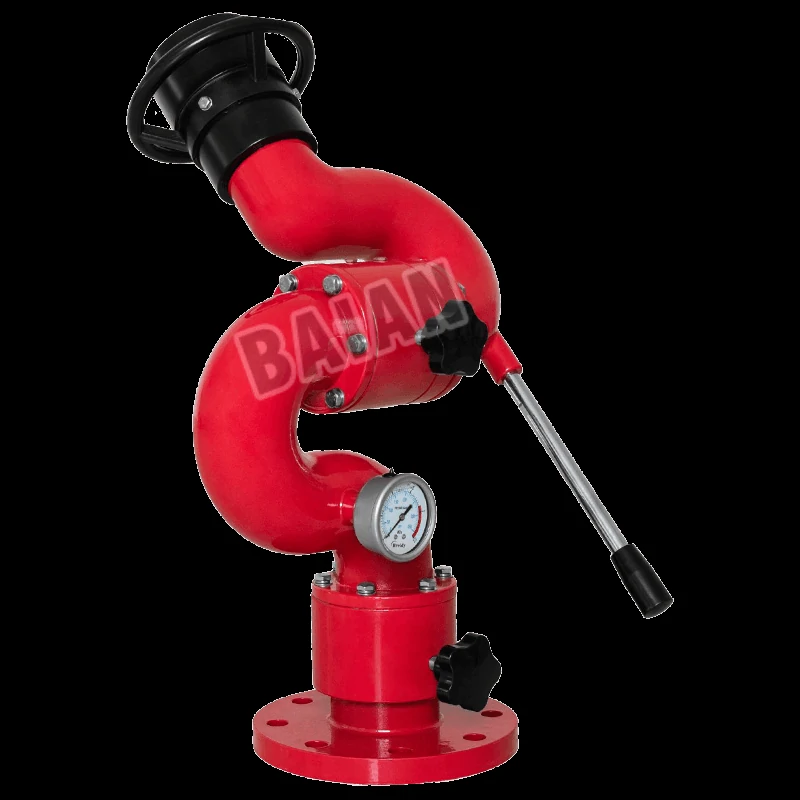

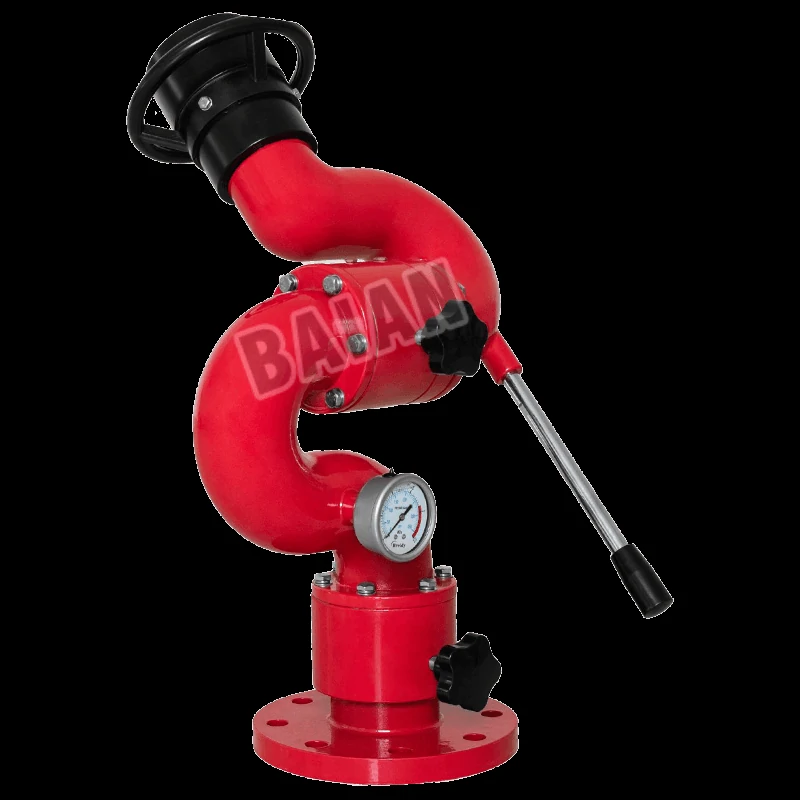

4 Inch Aluminum Alloy Manual Fire Water Monitor

4 Inch Aluminum Alloy Manual Fire Water Monitor
PS8/30-50-W-B (1800-3000LPM)

Basic composition

1. Single-bend pipe design
Flow channel optimization: The single-bend pipe adopts an arc flow channel design to reduce water flow resistance and increase the range (the range is increased by 10%~15% compared to the straight pipe structure).
Anti-recoil design: The bend angle (usually 90°~120°) combined with a heavy base effectively offsets the spray recoil force and ensures operational stability.
2. Fire Monitor Body: The main structure is usually made of corrosion-resistant and high-pressure resistant metal materials (such as aluminum alloy and stainless steel).
3. Nozzle: Adjustable water flow form (direct current/spray), control range and coverage range.
4. Drive device: Provides power for horizontal rotation and pitch angle adjustment, divided into manual, electric, hydraulic or pneumatic drive.

Working principle

1. Through the water pump booster, the water flow from the fire fighting pipe network or water source is sprayed to the fire scene at high speed.
2. The operator or intelligent system adjusts the nozzle angle and water flow form to accurately cover the fire source.

Application scenarios

1. Petrochemical storage tank area, refinery
2. Large logistics warehouse, parking lot
3. Stadium, exhibition center, airport terminal
4. Outdoor open areas such as forests and ports

Product features

1. Aluminum alloy structure;
2. Spray mode: DC, mist;
3. Horizontal 360° rotation;
4. Vertical -15° to +60° elevation;

Flange standard

BS4504, ANSI150, GB, etc.
