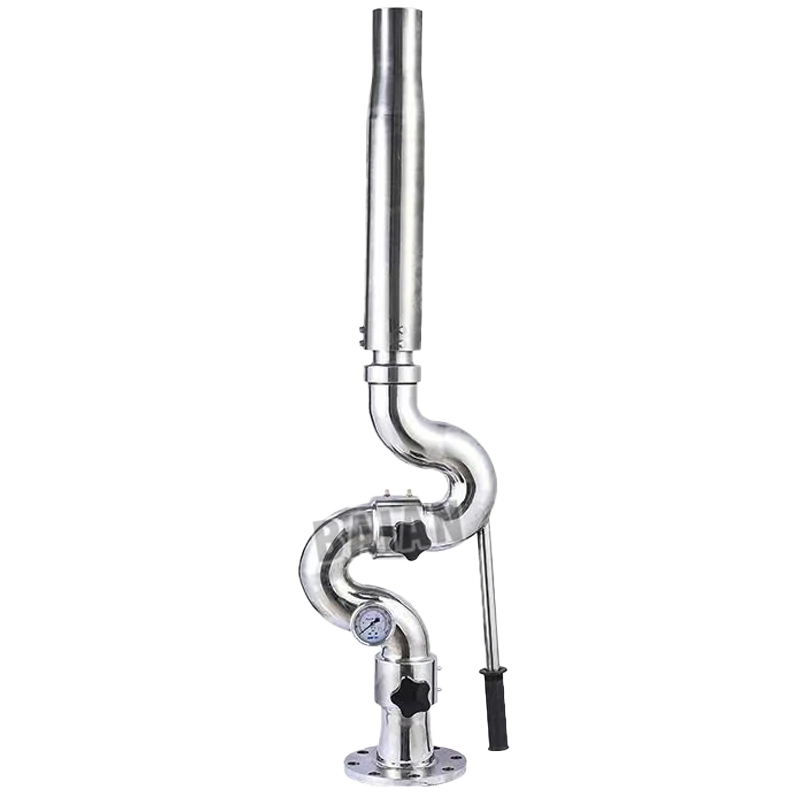

FA 2.5 inch Flange Inlet Stainless Steel Manual Fire Water Foam Monitor
This kind of Manual Fire Water Cannon is made of SS304, this fire monitor offers 24-48LPS flow with DC spray mode. It features handle-controlled 360° horizontal rotation and -15° to +60° vertical lifting, compatible with BS4504, ANSI150, and GB flange standards.
2.5 inch Flange Inlet Stainless Steel Manual Fire Water Foam Monitor
PL8/24-48-H(1440-2880LPM)
Specifications
1. Material: SS304;
2. Flow rate: 24-48LPS
3. Spray mode: DC;
4. Operation: handle control, horizontal 360° rotation, vertical -15° to +60° lifting;
5. Flange standards: BS4504, ANSI150, GB, etc.
Application scenarios
1. Industrial fire protection: petrochemical storage tank area, chemical plant, offshore platform (anti-salt spray corrosion).
2. Fixed installation: building roof, fire truck, dock (stainless steel durability > 15 years).
3. High-risk environment: acid/alkali chemical leakage, high temperature fire (stainless steel melting point > 1400°C).
Working principle
1. Manual operation: control pitch (-90°~+90°) and horizontal rotation (0°~360°) by rotating the handwheel/crank.
2. Medium switching: manual valve switching pure water/foam mixture → spray through nozzle atomization (range 70~120 meters).
Core features
1. Super corrosion resistance: 316 stainless steel contains molybdenum and is resistant to chloride corrosion (such as seawater and chemical foam).
2. High temperature deformation resistance: low thermal expansion coefficient, continuous working temperature can reach 800°C.
3. Zero maintenance life: no risk of electroplating layer falling off, maintenance-free design.
4. Fully sealed structure: IP66 protection level, dustproof and waterproof.
Working pressure
Standard range: 8~12 bar (0.8~1.2 MPa), high pressure model supports 16 bar.
