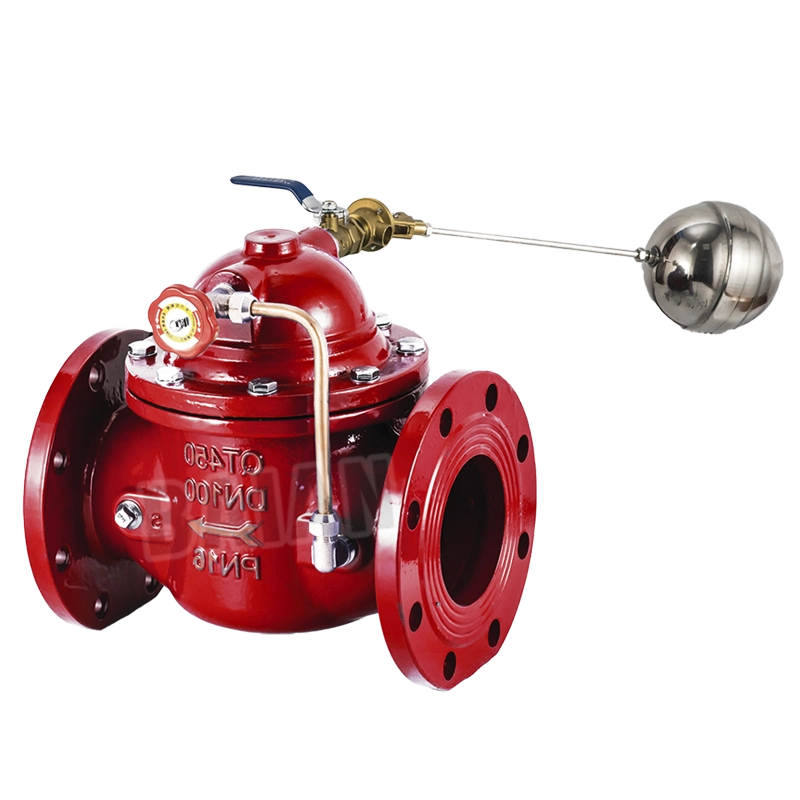

FA 100X-16Q Floating Valve
The 100X – 16Q Floating Valve automatically controls liquid level via a float and remote signals, suitable for tanks and pools. With dual control modes and precise adjustment, it works at max 16 bar and 0°C – 80°C.
See more at Control Valve Catalog!
100X-16Q Floating Valve
SPECIFICATIONS
1.Floating valve is a valve that can automatically open and close by sensing the liquid level change through a float and combining it with a remote control signal.
2.It is mainly used for liquid level control of water storage facilities such as water tanks and pools, and has both mechanical feedback and remote operation functions.
3.Liquid level rises: The float rises with the water level, triggers the closing signal through the lever, the valve gradually closes, and the water intake stops.
4.Liquid level drops: The float falls, the lever triggers the opening signal, the valve opens, and water replenishment begins.
FEATURE :
1.Dual control mode:Supports mechanical float automatic control and remote electronic control to meet complex working conditions.
2.Precise liquid level adjustment:High and low liquid level thresholds can be set to achieve precise start and stop, avoiding overflow or idling.
3.High sealing:The valve seat adopts soft seal (such as EPDM rubber), which is leak-free and wear-resistant when closed.
4.Strong anti-interference:The float mechanism and actuator are separated to reduce the impact of water impurities on control accuracy.
5.Low maintenance cost:Modular structure, the actuator or float assembly can be replaced separately in case of failure.
Typical application scenarios
1.Water supply system:Automatic water replenishment and liquid level protection for roof water tanks and underground water tanks.
2.Fire protection system:Water level control of fire water tanks to ensure emergency water reserves.
3.Industrial circulating water:Flow regulation and energy-saving management of cooling towers and boiler water replenishment systems.
4.Agricultural irrigation:Intelligent water level control of large water storage tanks to reduce manual intervention.
WORKING PRESSURE
Maximum working pressure 16 bar (230psi).
STANDARD
Product testing is carried out in accordance with GB/T13927 Industrial valve pressure test.
TEMPERATURE RANGE
0 °C to 80°C.
COATING
Fusion Bonded Epoxy Coating.
