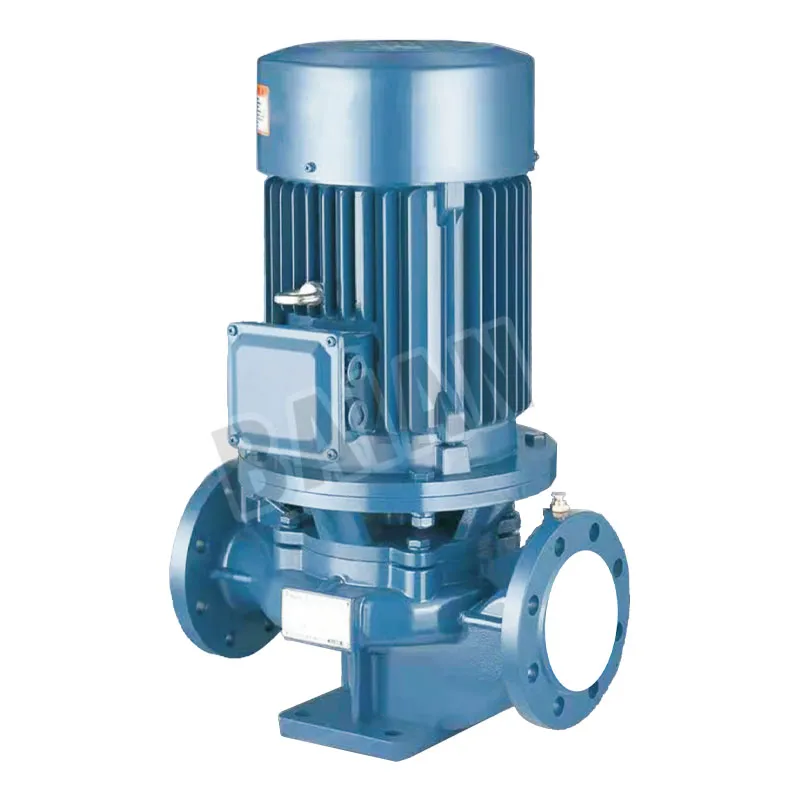

Vertical single-stage in-line pump

Vertical single-stage in-line pump

Product Introduction

1. Vertical Structure: The pump is vertical, with inlet and outlet ports of the same diameter and located on the same centerline. It can be installed in pipelines like a valve, resulting in a compact and aesthetically pleasing appearance, a small footprint, and low construction investment. With a protective cover, it can be used outdoors.
2. Smooth Operation: The impeller is directly mounted on the extended motor shaft, resulting in a short axial dimension and compact structure. The pump and motor bearings are optimally configured to effectively balance the radial and axial loads generated by pump operation, ensuring smooth operation with minimal vibration and noise.
3. Mechanical Seal: The shaft seal utilizes either an engine-ignition seal or a mechanical seal combination. Imported titanium alloy sealing rings, medium-sized, high-temperature-resistant mechanical seals, and wear-resistant seals made of carbide are used to effectively extend the service life of the mechanical seal.
4. Series/Parallel Operation: The pump can be operated in series or parallel, depending on the required flow rate and head.
5. Horizontal or Vertical Operation: The pump can be installed in either vertical or horizontal configuration, depending on the pipeline layout.

Core Advantages

1.Fully Electric Protection
Prevents impacts during production and protects the stator coils
2.High-performance design, no burnout
Built-in overload protection and phase loss protection prevent burnout
3.Long-lasting durability
Long bearing life, low noise, and energy savings
4.Excellent heat dissipation
Full contact between the core and the casing ensures excellent heat dissipation and low operating temperature rise.

Applications

Suitable for industrial and urban water supply and drainage, high-rise building pressure boosting, garden sprinkler irrigation, fire protection, long-distance transportation, HVAC/refrigeration cycles, bathroom heating and cooling water circulation boosting, and equipment support.

Specifications

1.Flow Rate Range: 1.8-1400 m³/h
2.Lift Range: ≤127 m
3.Power Range: -10°C to 80°C, 120°C
4.Rated Speed: 2960 r/min, 1480 r/min, or 980 r/min

Operating Conditions

1. Ambient temperature <40°C, relative humidity <95%
2. The solid particle content of the pumped medium must not exceed 0.1% per unit volume, and the particle size must be <0.2 mm;
3. Suction pressure ≤1.0 MPa or the maximum operating pressure of the pump system ≤1.6 MPa (i.e., pump inlet pressure + pump head S = 1.6 MPa).

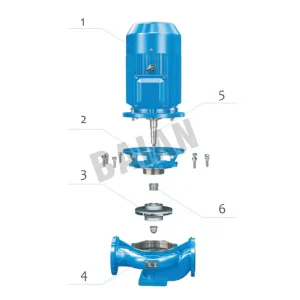

Structural Analysis
