Compressed air charging pump

Compressed air charging pump

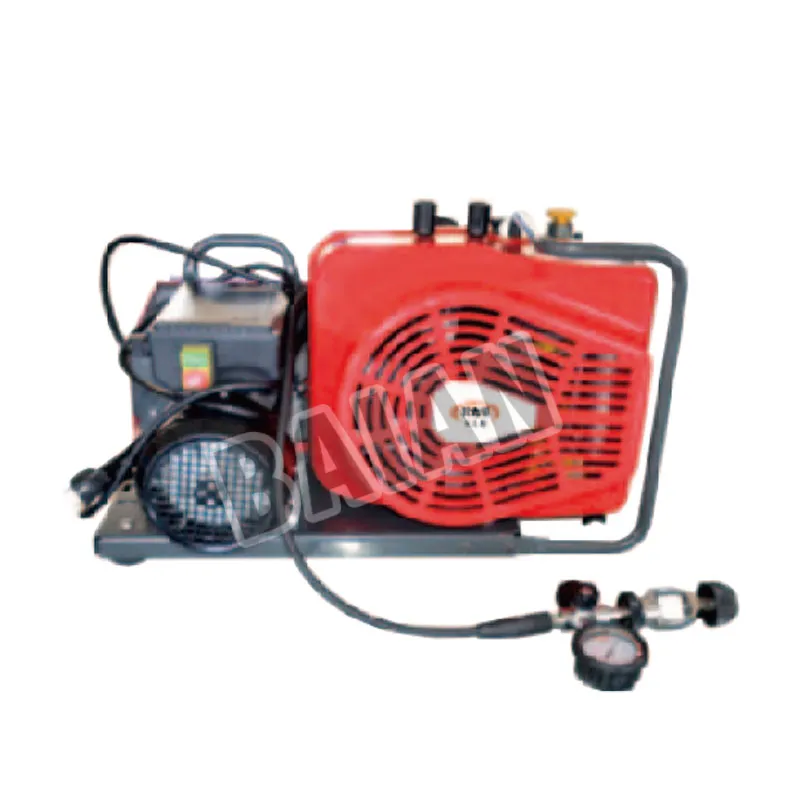

1. L Series

Product Introduction

This series of compressors is lightweight and easy to move. To meet diverse customer needs, three drive options are available: single-phase motor (220V 50Hz or 60Hz), three-phase motor (380V 50Hz or 60Hz), and gasoline engine. The L110 series' reliable durability ensures continuous air supply when needed.

Product Structure

1. Three-stage compression
2. Interstage and final stage oil-water separators
3. Interstage safety valves
4. Interstage and final stage manual condensate drains, and final stage pressure-maintaining valves

Standard Configuration

1. Inlet and final stage filters
2. Fan and belt guard
3. One charging hose, one G5/8 male threaded charging connector, and one pressure gauge
4. Tool kit
5. Special synthetic lubricant

Optional Configuration

1. Optional stainless steel frame and handle
2. Optional automatic drain and automatic shutdown control box

Technical Parameters

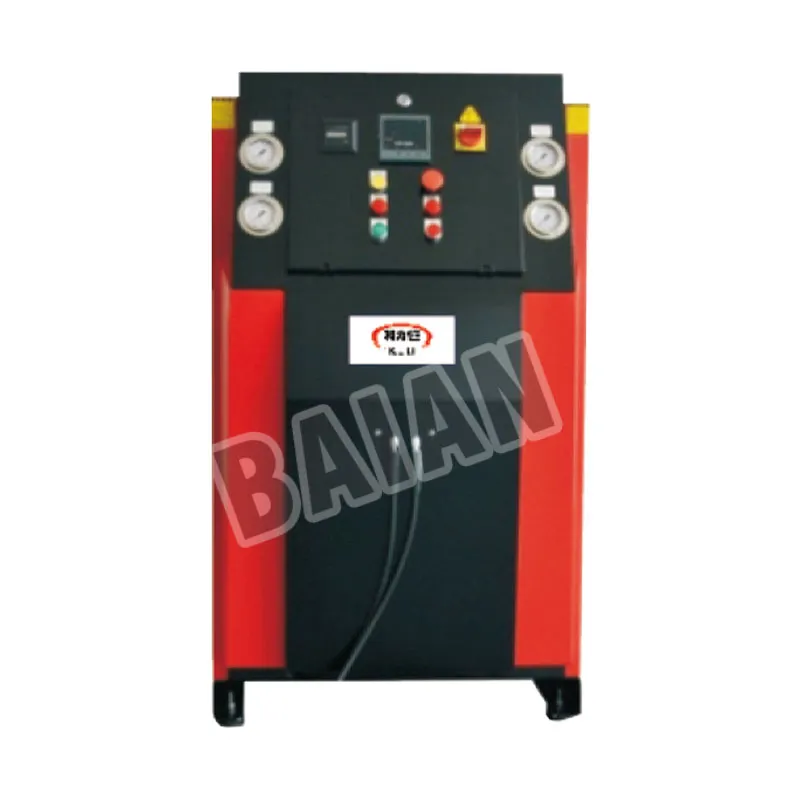

2. RES Series

Product Introduction

The RES Series is designed specifically for noise-sensitive environments. It utilizes a fully enclosed frame structure to minimize noise while ensuring adequate ventilation. This model offers excellent performance, safety, and reliability, making it suitable for units with large inflation volumes and low noise requirements. It is an ideal choice for firefighting, factories, and chemical industries.

Product Structure

1. Air Cooling
2. Three-Stage Compression
3. High-Efficiency Oil Pump Lubrication
4. Stainless Steel Cooling System
5. Interstage and Final-Stage Oil-Water Separators - Interstage Safety Valves

Standard Configuration

1. Inlet and Final-Stage Filters
2. Two Inflator Hoses, Two G5/8 Male-Threaded Inflator Valves
3. Adjustable Operating Pressure (Requires 2130 Bar)
4. Power Switch, Emergency Stop Button
5. Automatic Drain and Shutdown Functions
6. Automatic Timing
7. Pressure Display for Each Stage
8. Motor Overload, Overvoltage, and Phase Sequence Protection
9. Oil Level Protection
10. Special Synthetic Lubricant

Optional Configuration

1. Submersible Inflator Connector
2. Optional Four Inflator Heads
3. PLC Control
4. Industrial Microcomputer Control System

Technical Parameters

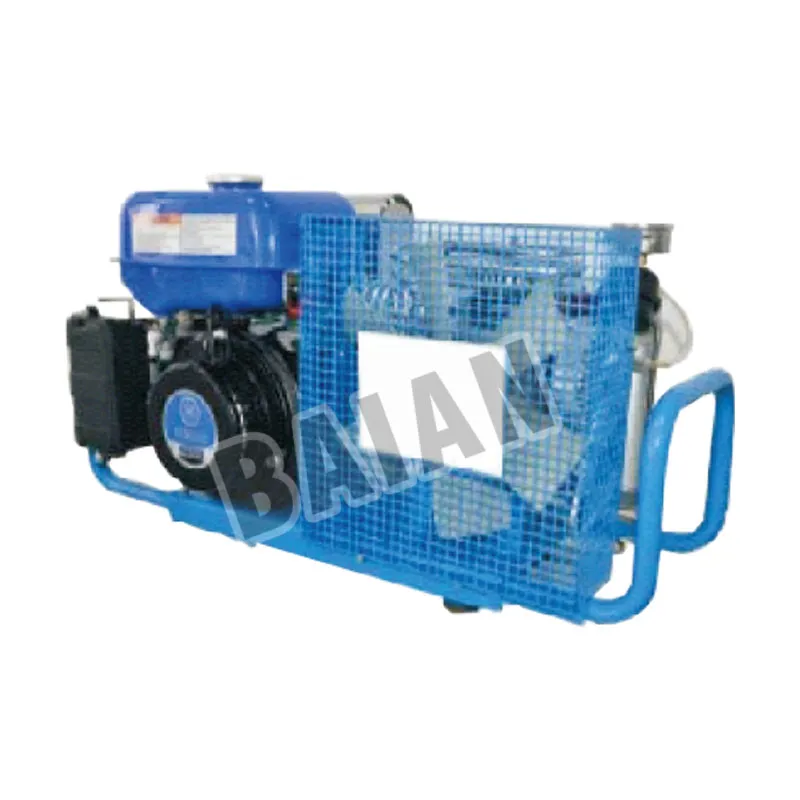

3. Model: GMC-100SHKLH

Product Introduction

The GMC-100SHKLH compressor is a portable breathing air compressor suitable for firefighting, diving, armed police, marine operations, shooting, salvage, and rescue operations. With its elegant appearance, low vibration, easy operation, and high reliability, it stores and produces clean, high-pressure air anytime, anywhere. Compressed air quality complies with EN12021 standards.

Product Structure

1. Air-cooled
2. Four-cylinder, four-stage compression
3. Final-stage oil-water separator
4. Final-stage manual condensate drain - final safety valve

Standard Configuration

1. Equipped with activated carbon and molecular sieve filters
2. Equipped with air intake and final-stage filters
3. Equipped with fan and metal belt guards
4. Equipped with one high-pressure charging hose, one G5/8 male threaded charging connector, and one pressure gauge
5. Equipped with a tool kit
6. Dedicated fully synthetic lubricant

Optional Configuration

1. Optional stainless steel frame and handle
2. Optional automatic shutdown

Technical Parameters
