Fine water mist monitor

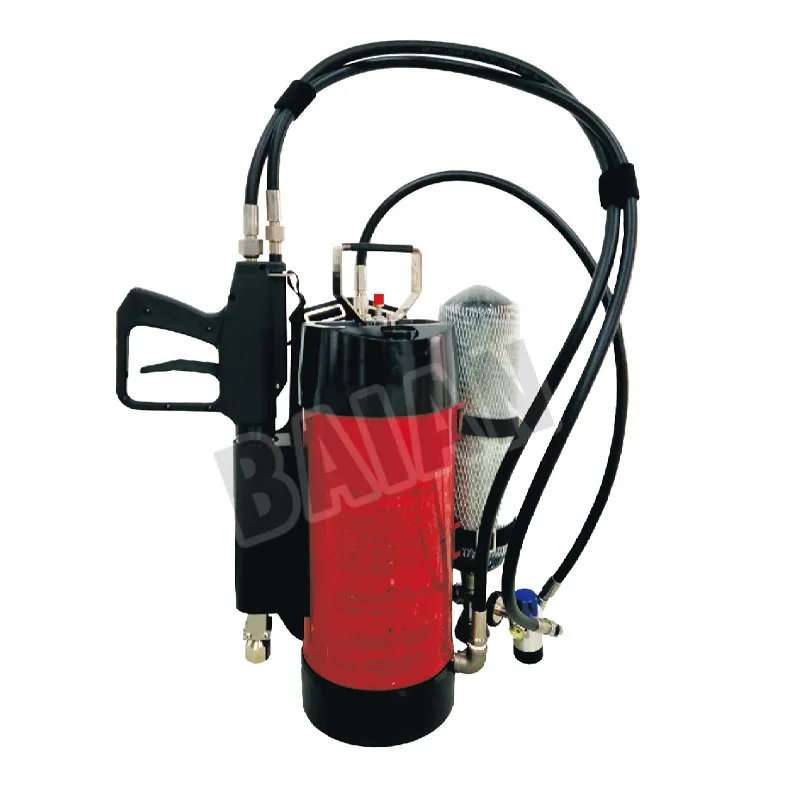

Backpack water mist monitor QXWL1.2/18Q-B12-KLH

Fine water mist monitor

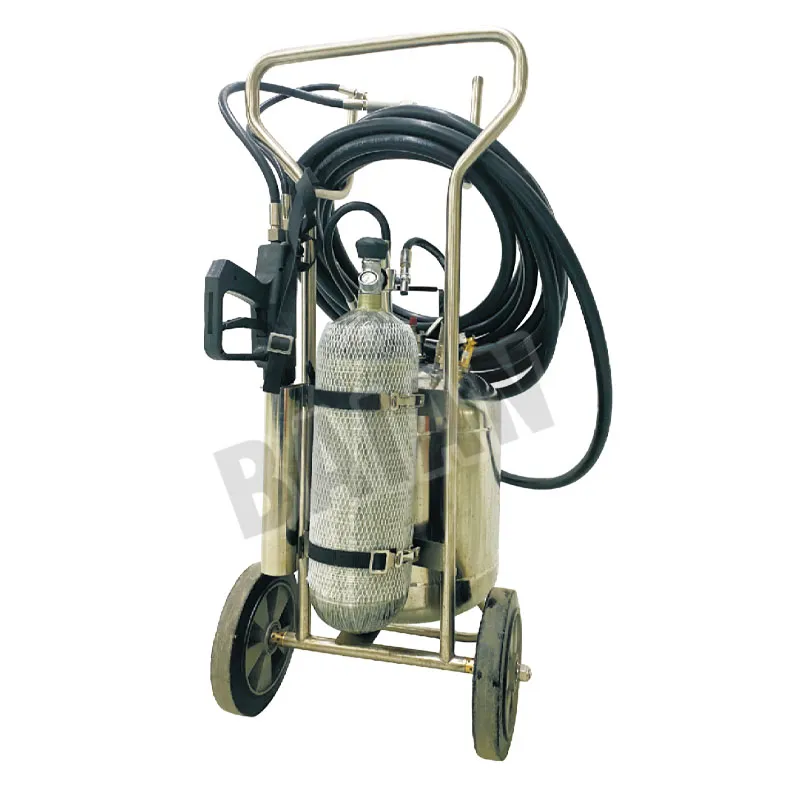

Trolley-type water mist monitor QXWL1.2/13Q-T45-KLH

Fine water mist monitor

Product Introduction

A water mist gun is a fire extinguishing device powered by compressed air. It generates a high-speed, high-density, ultra-fine water mist stream by mixing compressed air with the extinguishing medium within the gun body and accelerating it through the nozzle.

Applicable Fires

Class A (solid fires) and Class B (liquid fires).

Applicable Locations

Suitable for areas requiring special protection, such as forests and grasslands, cultural relics and buildings, industrial parks, large factories, warehouses, logistics parks, community streets, stations, airports, subways, and large public transportation vehicles.

Technical Parameters

Table 1. Backpack water mist monitor QXWL1.2/18Q-B12-KLH
Item			Standard Requirements	Test Results
Basic Parameters	Gas Cylinder	Working Volume (L)	3.0	3.0
	Gas Cylinder	Nominal Pressure (MPa)	30±1	30
	Liquid storage capacity	Volume (L)	12	12.8
	Liquid storage capacity	Working pressure (MPa)	Published value	0.8
	Hose length (m)		≥1.2	1.3
	Total mass (kg) (filled with water and compressed air)		≤30	27.8
Spray Performance	Water mist range (m)		≥5	5
	Water mist range (m)		≥10	10
	Spray residual rate (%)		≤5	1
Fire Extinguishing Performance	Class A Fire (Solid Fire)		≥2A	4A
Fire Extinguishing Performance	Class B Fire (Liquid Fire)		≥55B	89B

Table 2. Trolley-type water mist monitor QXWL1.2/13Q-T45-KLH
Item			Standard Requirements	Test Results
Basic Parameters	Gas Cylinder	Working Volume (L)	6.8	6.8
	Gas Cylinder	Nominal Pressure (MPa)	30±1	30
	Liquid storage capacity	Volume (L)	45	45
	Liquid storage capacity	Working pressure (MPa)	Published value	0.8
	Hose length (m)		≥15	15.5
	Total mass (kg) (filled with water and compressed air)		≤450	86.45
Spray Performance	Water mist range (m)		≥5	5
	Water mist range (m)		≥10	11
	Spray residual rate (%)		≤5	0.5
Fire Extinguishing Performance	Class A Fire (Solid Fire)		≥4A	4A
Fire Extinguishing Performance	Class B Fire (Liquid Fire)		≥144B	144B
