Description

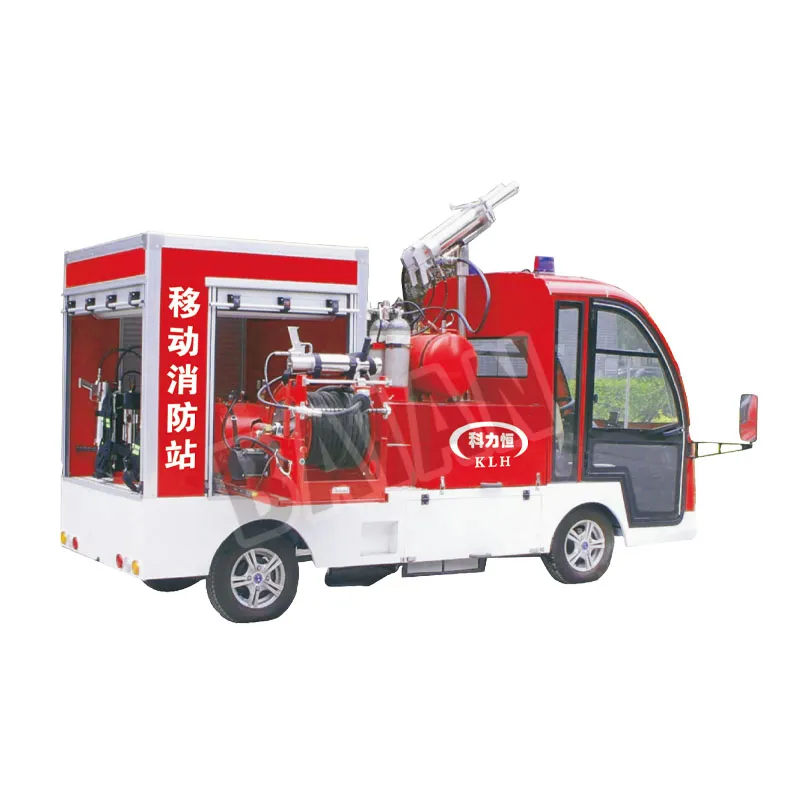

Mobile fire station

Two-section tracked all-terrain vehicle

Présentation du produit

The KC-01A mobile fire station, designed to "rescue early, extinguish small fires, and arrive on scene within three minutes," is equipped with our company's advanced pulse atomization firefighting equipment and essential firefighting equipment. Relying on volunteer firefighting teams and community-based fire prevention and control teams, it is a fully staffed, fully equipped, and highly effective combat unit designed to enhance the self-prevention and self-rescue capabilities of key units and effectively address initial fires. As the smallest firefighting unit for key fire safety units and community development, it can rapidly respond to and extinguish larger fires, providing the primary and most important safeguard for the safety of life and property.

Paramètres techniques

Project	Content
Electric Fire Truck	Vehicle Specifications	Rated occupants	2 people	Length * Width * Height	4200mm1500mm2250mm
		Vehicle weight	1350kg	Vehicle Load	2050kg
		Front and rear track	1235/1235mm	Wheelbase	2370mm
		Minimum ground clearance	150mm	Braking Distance	<5m
		Maximum gradeability	20%	Minimum Turning Radius	4.5m
		Maximum speed	30km/h	Cruise Range	60-80km
	Electrical System	Motor	4KW DC motor
		Battery	6V 180AH/battery, 8/48V (maintenance-free gel batteries)
		Electric control	Fully intelligent controller
		Charger	Onboard intelligent charger
		Charging time	8-10 hours (discharge rate 80%)
	Chassis System	Powertrain	Continuously variable transmission
		Steering system	Rack and pinion steering + electronic power steering
		Front axle and suspension	McPherson independent suspension
		Rear axle and suspension	Integral rear axle + high-strength leaf springs + cartridge hydraulic shock absorbers
		Brake system	Front disc and rear drum hydraulic brakes, dual-circuit hydraulic brakes, parking brake
		Wheels	155R12LT vacuum radial tires
Main Firefighting Equipment	3L and 5L Pulse Monitors		Water Supply System: 75L water tank; Air Supply System: 2 x 6.8L (30MPa carbon fiber high-pressure gas cylinders); Single-shot volume: 3L, 5L; Maximum spray distance: >35 meters; Horizontal swing angle: ±45°; Pitch swing angle: ±45°; Effective fire extinguishing range: 5-25 meters.
	Coaxial Hose Reel + QWMB12 Backpack Pulse Air Pressure Spray Monitor		Coaxial tube length: 30 meters, 50 meters (optional). Water Supply System: 75L water tank; Air Supply System: 2 x 6.8L (30MPa carbon fiber high-pressure gas cylinders).
	QWMB12 Backpack Pulse Air Pressure Spray Monitor		Water bucket: 12L; Gas cylinder: 2L, 30MPa; Single-shot volume: 1L; Effective number of sprays: ≥12; Effective spray distance: 19.2 meters; Effective fire extinguishing range: 0-15 meters; Gross loaded weight: 28.3kg.
	QXWL1.2/18Q-B12-KLH Backpack Water Mist Monitor		Water bucket: 12L; Gas cylinder: 3L, 30MPa; Flow rate: 18L/min; Continuous spraying time: ≥35s; Effective spraying distance: 10 meters; Effective fire extinguishing range: 0-10 meters; Total loading weight: 27.8kg.
Other Firefighting Equipment	It can be equipped with fire extinguishers, water guns, water hoses, fire helmets, fire-fighting protective clothing, protective boots, demolition tools and other equipment.
